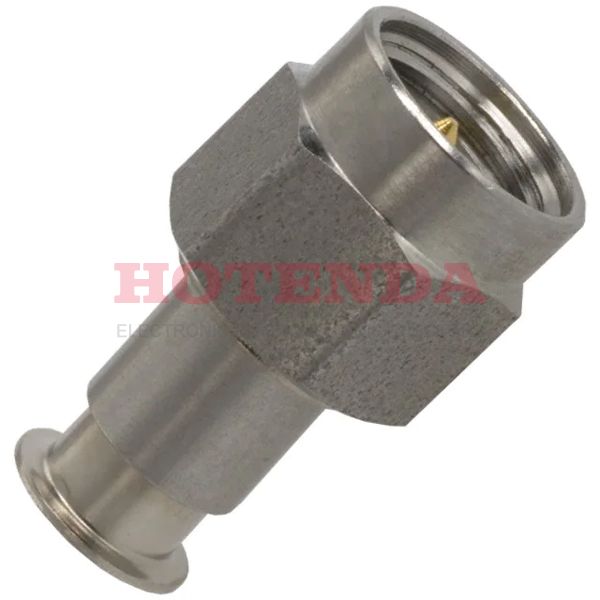

Name: 227743-1
Brand: TE Connectivity Aerospace, Defense and Marine
SKU: 227743-1
Price: 24.08000 USD
Availability: InStock

new

227743-1

Manufacturer part number:227743-1

Manufacturer:TE Connectivity Aerospace, Defense and Marine

Description:Plug, Male Pin Threaded 50Ohm Bulk SMA Crimp 1 Port Polytetrafluoroethylene (PTFE) -65°C~105°C

Case Package:SOT-23

Datasheet:227743-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	8 Weeks
Contact Material	Copper
Mount	Cable
Mounting Type	Free Hanging (In-Line)
Insulation Material	Polytetrafluoroethylene
Dielectric Material	Polytetrafluoroethylene (PTFE)
Body Material	Stainless Steel
Center Contact Plating	Gold
Center Contact Material	Beryllium Copper
Operating Temperature	-65°C~105°C
Packaging	Bulk
Series	Military, MIL-PRF-39012
Published	2005
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Connector Type	Plug, Male Pin
Number of Positions	1
Gender	Male
Voltage - Rated	500V
Fastening Type	Threaded
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Option	GENERAL PURPOSE
Total Number of Contacts	1
Orientation	Straight
Frequency	18GHz
Reliability	COMMERCIAL
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Housing Color	Silver
Body Depth	0.544 inch
Polarity	Standard
Contact Style	COAX
Insulation Resistance	200000000Ohm
ELV	Compliant
Cable Type	RG-402/U
Impedance	50Ohm
Connector Style	SMA
Number of Ports	1
Body Plating	Passivated
Mating Cycles	500
Contact Termination	Crimp
Insertion Loss	0.3dB
Cable Group	RG-402 (.141 Semi Rigid)
Length	16mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Not Applicable

227743-1 Product Details

227743-1 Overview

This product is packaged in a Plug, Male Pin box.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number Military, MIL-PRF-39012 belongs to the Military, MIL-PRF-39012 Series.There are 1 ports available for managing a variety of tasks on this device.There is a Cable mount on the part.This device operates at a temperature of -65°C~105°C.At a frequency of 18GHz, it can operate efficiently.
