Name: B32672Z6473J000
Brand: TDK Electronics Inc.
SKU: B32672Z6473J000
Price: 0.19000 USD
Availability: InStock

new-10%

B32672Z6473J000

Manufacturer part number:B32672Z6473J000

Manufacturer:TDK Electronics Inc.

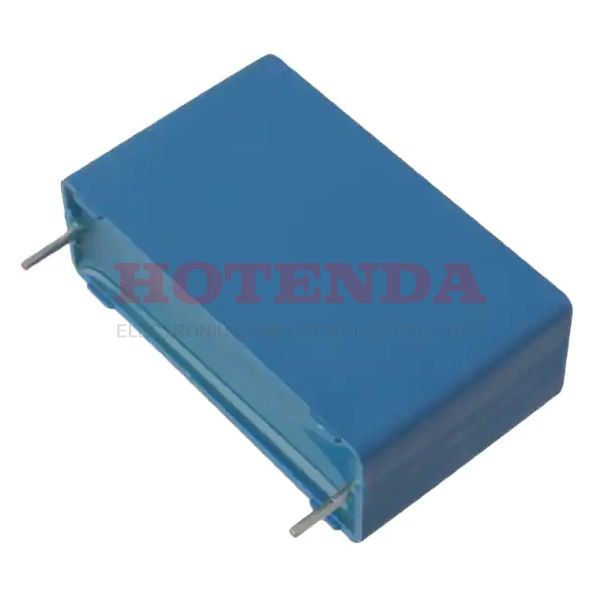

Description:B32672Z 0.047μF Film Capacitor ±5% Radial PC Pins 630V-DC 310V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32672Z6473J000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~110°C
Packaging	Bulk
Series	B32672Z
Size / Dimension	0.709Lx0.197W 18.00mmx5.00mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Power Factor Correction (PFC)
Additional Feature	RATED AC VOLTAGE (V): 310
HTS Code	8532.25.00.70
Capacitance	0.047μF
Voltage - Rated DC	630V
Terminal Pitch	15mm
Voltage - Rated AC	310V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	630V
Size Code	7120
Rated (AC) Voltage (URac)	310V
Height Seated (Max)	0.413 10.50mm
Length	18mm
Width	5mm
RoHS Status	ROHS3 Compliant

B32672Z6473J000 Product Details

B32672Z6473J000 Overview

An internal (DC) voltage of 630V is required for systems to function.0.591 15.00mm is the lead spacing of this electrical device.In order for systems to be powered, a constant (AC) voltage (URac) is required.It is capable of operating at -55°C~110°C degrees Celsius.
