Name: B32672L1682J289
Brand: TDK Electronics Inc.
SKU: B32672L1682J289
Price: 0.19000 USD
Availability: InStock

new-10%

B32672L1682J289

Manufacturer part number:B32672L1682J289

Manufacturer:TDK Electronics Inc.

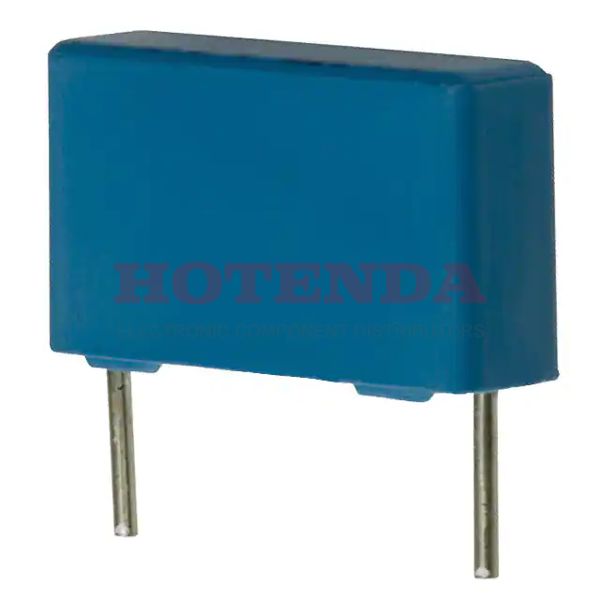

Description:B32672L 6800pF Film Capacitor ±5% Radial PC Pins 1600V 1.6kV-DC 600V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32672L1682J289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~110°C
Packaging	Tape & Box (TB)
Series	B32672L
Size / Dimension	0.709Lx0.197W 18.00mmx5.00mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	High Frequency, Switching; High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 600
HTS Code	8532.25.00.70
Capacitance	6800pF
Voltage - Rated DC	1600V 1.6kV
Packing Method	AMMO PACK
Terminal Pitch	15mm
Voltage - Rated AC	600V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	1600V
Size Code	7120
Rated (AC) Voltage (URac)	600V
Height Seated (Max)	0.413 10.50mm
Length	18mm
Width	5mm
RoHS Status	ROHS3 Compliant

B32672L1682J289 Product Details

B32672L1682J289 Overview

For systems to function, the rated (DC) voltage (URdc) must be 1600V.This electrical device has a 0.591 15.00mm lead spacing.It is required that systems be powered by an internal rated (AC) voltage of 600V.Temperatures as low as -55°C~110°C are suitable for the device.
