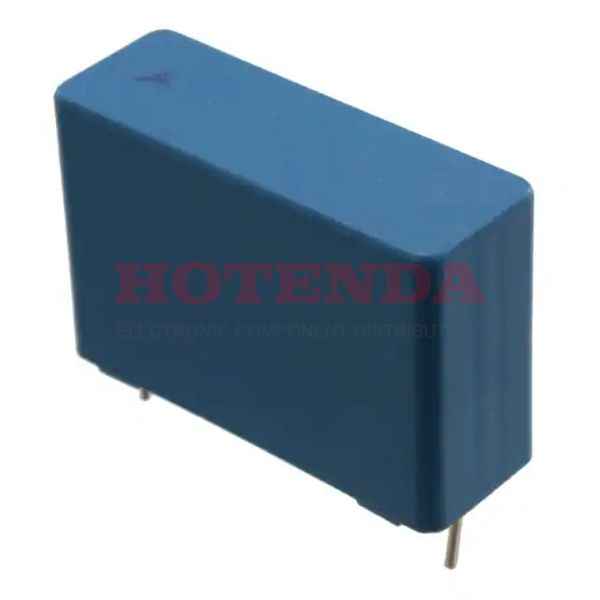

Name: B32654A2223K000
Brand: TDK Electronics Inc.
SKU: B32654A2223K000
Price: 2.50000 USD
Availability: InStock

new-10%

B32654A2223K000

Manufacturer part number:B32654A2223K000

Manufacturer:TDK Electronics Inc.

Description:B32654 0.022μF Film Capacitor ±10% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32654A2223K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Bulk
Published	2009
Series	B32654
Size / Dimension	1.240Lx0.433W 31.50mmx11.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 700
HTS Code	8532.25.00.70
Capacitance	0.022μF
Voltage - Rated DC	2000V 2kV
Terminal Pitch	27.5mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	700V
Capacitor Type	FILM CAPACITOR
Lead Spacing	1.083 27.50mm
Rated (DC) Voltage (URdc)	2000V
Rated (AC) Voltage (URac)	700V
Height Seated (Max)	0.827 21.00mm
Length	31.5mm
Width	11mm
RoHS Status	ROHS3 Compliant

B32654A2223K000 Product Details

B32654A2223K000 Overview

For systems to function, the rated (DC) voltage (URdc) must be 2000V.This electrical device has a 1.083 27.50mm lead spacing.It is required that systems be powered by an internal rated (AC) voltage of 700V.Temperatures as low as -55°C~100°C are suitable for the device.
