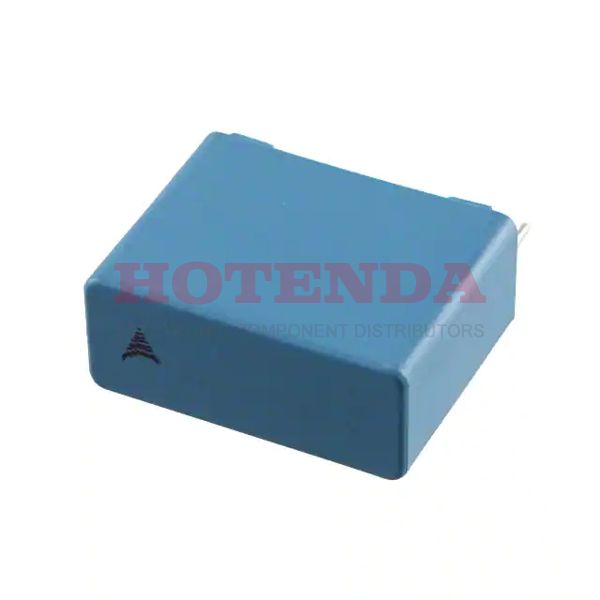

Name: B32653A0224K189
Brand: TDK Electronics Inc.
SKU: B32653A0224K189
Price: 0.75000 USD
Availability: InStock

new-10%

B32653A0224K189

Manufacturer part number:B32653A0224K189

Manufacturer:TDK Electronics Inc.

Description:B32653 0.22μF Film Capacitor ±10% Radial PC Pins 1000V 1kV-DC 250V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32653A0224K189 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Tape & Reel (TR)
Series	B32653
Size / Dimension	1.043Lx0.433W 26.50mmx11.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 250
HTS Code	8532.25.00.70
Capacitance	0.22μF
Voltage - Rated DC	1000V 1kV
Packing Method	TR
Terminal Pitch	22.5mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	250V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.886 22.50mm
Rated (DC) Voltage (URdc)	1000V
Rated (AC) Voltage (URac)	250V
Height Seated (Max)	0.807 20.50mm
Length	26.5mm
Width	11mm
RoHS Status	ROHS3 Compliant

B32653A0224K189 Product Details

B32653A0224K189 Overview

To work properly, systems need a rated (DC) voltage of 1000V.There is 0.886 22.50mm lead spacing on this electrical device.Systems require a voltage of 250V for their internal rated power (URac).A temperature of -55°C~100°C is suitable for operation of the device.
