Name: B32652A7333J289
Brand: TDK Electronics Inc.
SKU: B32652A7333J289
Price: 0.36000 USD
Availability: InStock

new-10%

B32652A7333J289

Manufacturer part number:B32652A7333J289

Manufacturer:TDK Electronics Inc.

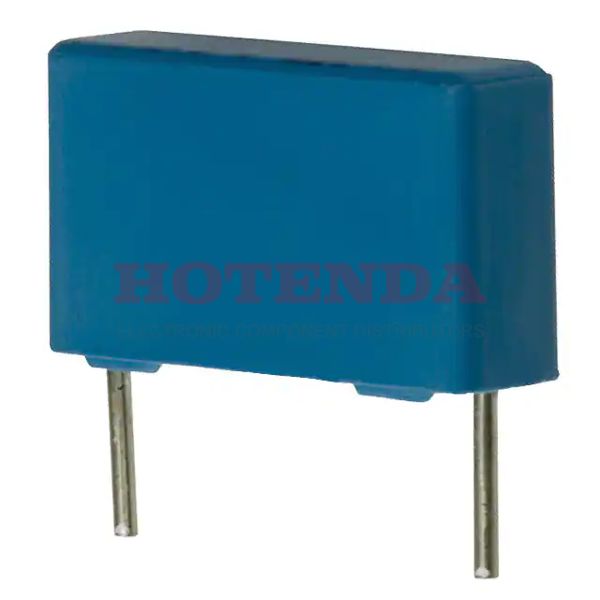

Description:B32652 0.033μF Film Capacitor ±5% Radial PC Pins 1250V 1.25kV-DC 500V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32652A7333J289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Tape & Box (TB)
Series	B32652
Size / Dimension	0.709Lx0.354W 18.00mmx9.00mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Low ESL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT; Snubber
Additional Feature	RATED AC VOLTAGE (V): 500
HTS Code	8532.25.00.70
Capacitance	0.033μF
Voltage - Rated DC	1250V 1.25kV
Packing Method	AMMO PACK
Terminal Pitch	15mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	500V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	1250V
Size Code	7135
Rated (AC) Voltage (URac)	500V
Height Seated (Max)	0.689 17.50mm
Length	18mm
Width	9mm
RoHS Status	ROHS3 Compliant

B32652A7333J289 Product Details

B32652A7333J289 Overview

To function, systems require a rated (DC) voltage (URdc) of 1250V.Electrical devices such as this have a lead spacing of 0.591 15.00mm.Powering systems requires an internal rated (AC) voltage (URac) of 500V.In addition to operating at -55°C~100°C degrees, the device is capable of operating at other temperatures as well.
