Name: B32652A7223J000
Brand: TDK Electronics Inc.
SKU: B32652A7223J000
Price: 0.95000 USD
Availability: InStock

new-10%

B32652A7223J000

Manufacturer part number:B32652A7223J000

Manufacturer:TDK Electronics Inc.

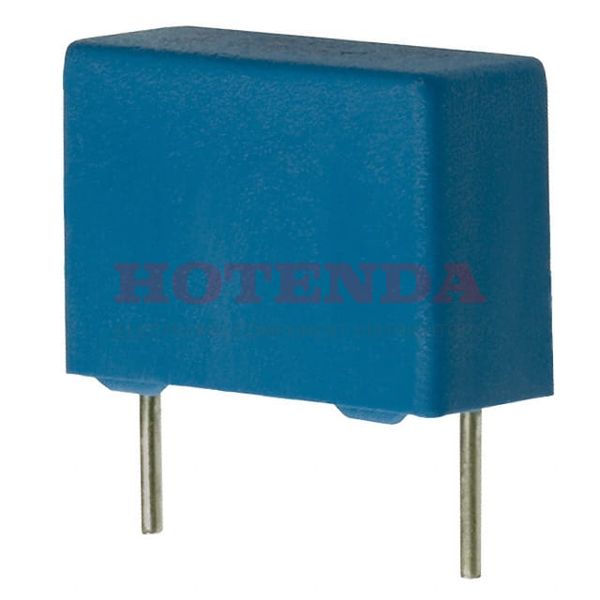

Description:B32652 0.022μF Film Capacitor ±5% Radial PC Pins 1250V 1.25kV-DC 500V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32652A7223J000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Bulk
Series	B32652
Size / Dimension	0.709Lx0.335W 18.00mmx8.50mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT; Snubber
Additional Feature	RATED AC VOLTAGE (V): 500
HTS Code	8532.25.00.70
Capacitance	0.022μF
Voltage - Rated DC	1250V 1.25kV
Terminal Pitch	15mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	500V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	1250V
Size Code	7133
Rated (AC) Voltage (URac)	500V
Height Seated (Max)	0.571 14.50mm
Length	18mm
Width	8.5mm
RoHS Status	ROHS3 Compliant

B32652A7223J000 Product Details

B32652A7223J000 Overview

It is essential that systems function with a rated (DC) voltage (URdc) of 1250V.Its lead spacing is 0.591 15.00mm.System power requires an AC voltage rating of 500V (URac).Temperatures as low as -55°C~100°C are suitable for the device.
