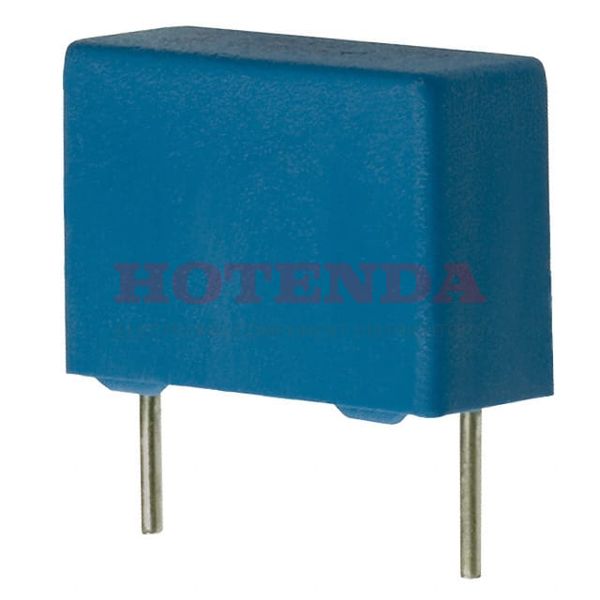

Name: B32652A1682K000
Brand: TDK Electronics Inc.
SKU: B32652A1682K000
Price: 0.22000 USD
Availability: InStock

new-10%

B32652A1682K000

Manufacturer part number:B32652A1682K000

Manufacturer:TDK Electronics Inc.

Description:B32652 6800pF Film Capacitor ±10% Radial PC Pins 1600V 1.6kV-DC 500V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32652A1682K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Bulk
Series	B32652
Size / Dimension	0.709Lx0.276W 18.00mmx7.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT; Snubber
Additional Feature	RATED AC VOLTAGE (V): 500
HTS Code	8532.25.00.70
Capacitance	6800pF
Voltage - Rated DC	1600V 1.6kV
Terminal Pitch	15mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	500V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	1600V
Size Code	7128
Rated (AC) Voltage (URac)	500V
Height Seated (Max)	0.492 12.50mm
Length	18mm
Width	7mm
RoHS Status	ROHS3 Compliant

B32652A1682K000 Product Details

B32652A1682K000 Overview

It is essential that systems function with a rated (DC) voltage (URdc) of 1600V.The lead spacing of this electrical device is 0.591 15.00mm.Systems require a voltage of 500V (URac) for internal rated (AC) power.Temperatures of -55°C~100°C are suitable for operating the device.
