Name: B32652A0223J189
Brand: TDK Electronics Inc.
SKU: B32652A0223J189
Price: 0.84000 USD
Availability: InStock

new-10%

B32652A0223J189

Manufacturer part number:B32652A0223J189

Manufacturer:TDK Electronics Inc.

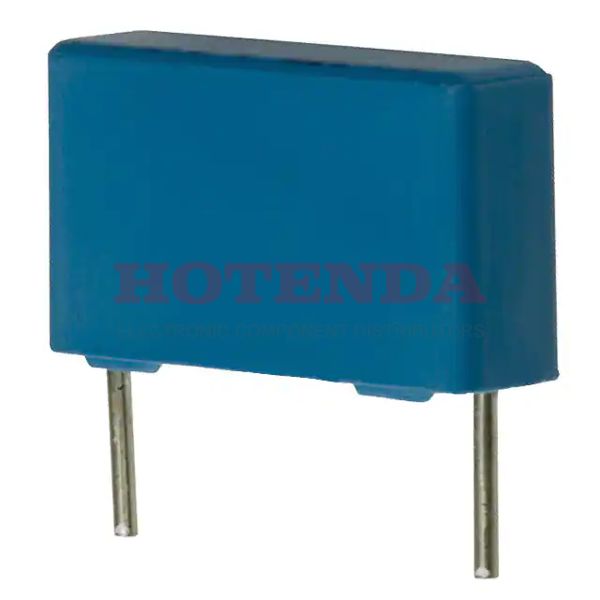

Description:B32652 0.022μF Film Capacitor ±5% Radial PC Pins 1000V 1kV-DC 250V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32652A0223J189 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Tape & Reel (TR)
Published	2013
Series	B32652
Size / Dimension	0.709Lx0.197W 18.00mmx5.00mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT; Snubber
Additional Feature	RATED AC VOLTAGE (V): 250
HTS Code	8532.25.00.70
Capacitance	0.022μF
Voltage - Rated DC	1000V 1kV
Packing Method	TR
Terminal Pitch	15mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	250V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	1000V
Size Code	7120
Rated (AC) Voltage (URac)	250V
Height Seated (Max)	0.413 10.50mm
Length	18mm
Width	5mm
RoHS Status	ROHS3 Compliant

B32652A0223J189 Product Details

B32652A0223J189 Overview

System function requires a rated (DC) voltage (URdc) of 1000V.Its lead spacing is 0.591 15.00mm.To power systems, URac must be set at 250V V.The device is capable of operating at the temperature of -55°C~100°C.
