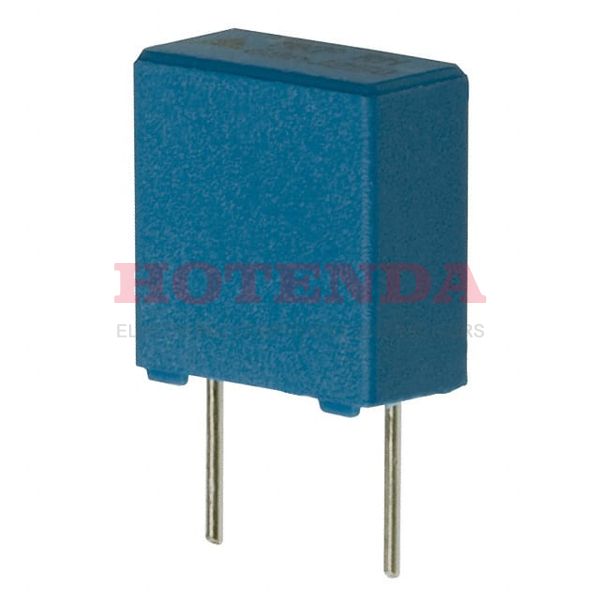

Name: B32620J0222K189
Brand: TDK Electronics Inc.
SKU: B32620J0222K189
Price: 0.21000 USD
Availability: InStock

new-10%

B32620J0222K189

Manufacturer part number:B32620J0222K189

Manufacturer:TDK Electronics Inc.

Description:B32620 2200pF Film Capacitor ±10% Radial PC Pins 1000V 1kV-DC 600V-AC Polypropylene (PP), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32620J0222K189 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized - Stacked
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Published	2012
Series	B32620
Size / Dimension	0.394Lx0.197W 10.00mmx5.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 600
HTS Code	8532.25.00.70
Capacitance	2200pF
Voltage - Rated DC	1000V 1kV
Packing Method	TR
Terminal Pitch	7.5mm
Voltage - Rated AC	600V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.295 7.50mm
Rated (DC) Voltage (URdc)	1000V
Size Code	3920
Rated (AC) Voltage (URac)	600V
Height Seated (Max)	0.413 10.50mm
Length	10mm
Width	5mm
RoHS Status	ROHS3 Compliant

B32620J0222K189 Product Details

B32620J0222K189 Overview

An internal (DC) voltage of 1000V is required for systems to function.Lead spacing is 0.295 7.50mm for this electrical device.It is required that systems be powered by an internal rated (AC) voltage of 600V.A temperature of -55°C~105°C is suitable for operation of the device.
