B32560J3223J000

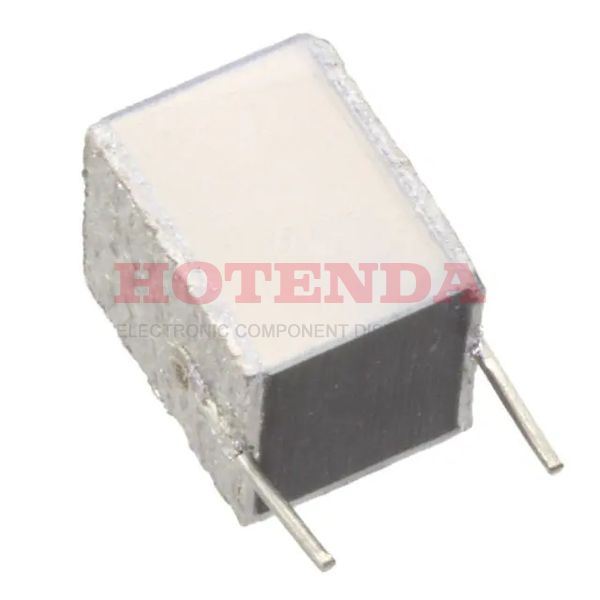

  • B32560J3223J000 - SilverCap™ B32560 0.022μF Film Capacitor ±5% 2-DIP PC Pins 250V-DC 160V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
  • B32560J3223J000 - SilverCap™ B32560 0.022μF Film Capacitor ±5% 2-DIP PC Pins 250V-DC 160V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

B32560J3223J000

B32560J3223J000

TDK Electronics Inc.

SilverCap™ B32560 0.022μF Film Capacitor ±5% 2-DIP PC Pins 250V-DC 160V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

SOT-23

B32560J3223J000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mounting Type Through Hole
Package / Case 2-DIP
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingBulk
Published 2009
Series SilverCap™ B32560
Tolerance ±5%
Part StatusNot For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Applications General Purpose
Capacitance 0.022μF
Voltage - Rated DC 250V
Voltage - Rated AC 160V
Lead Spacing0.295 7.50mm
RoHS StatusROHS3 Compliant
In-Stock:65682 items

Pricing & Ordering

QuantityUnit PriceExt. Price

B32560J3223J000 Product Details

B32560J3223J000 Overview


A 0.295 7.50mm lead spacing is used in this electrical device.Temperatures as low as -55°C~125°C are suitable for the device.

B32560J3223J000 Features



B32560J3223J000 Applications


There are a lot of TDK Electronics Inc. B32560J3223J000 applications of film capacitors.

  • Compact fluorescent lamps (CFL)
  • Coupling, decoupling
  • Blocking
  • Global positioning systems
  • RF Modules
  • Satellite TV
  • Matching networks
  • IGBT
  • Filtering
  • Bypassing
