Name: B32529C8472J000
Brand: TDK Electronics Inc.
SKU: B32529C8472J000
Price: 0.53000 USD
Availability: InStock

new-10%

B32529C8472J000

Manufacturer part number:B32529C8472J000

Manufacturer:TDK Electronics Inc.

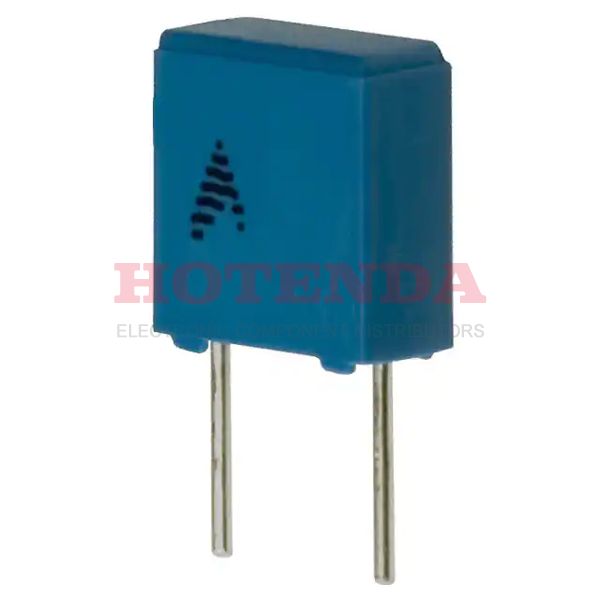

Description:B32529 4700pF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32529C8472J000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	27 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	B32529
Size / Dimension	0.287Lx0.138W 7.30mmx3.50mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	4700pF
Voltage - Rated DC	630V
Terminal Pitch	5mm
Reference Standard	AEC-Q200
Voltage - Rated AC	400V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.197 5.00mm
Rated (DC) Voltage (URdc)	630V
Rated (AC) Voltage (URac)	400V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.315 8.00mm
Length	7.3mm
Width	3.5mm
RoHS Status	ROHS3 Compliant

B32529C8472J000 Product Details

B32529C8472J000 Overview

For systems to operate, a rated (DC) voltage (URdc) of 630V must be applied internally.0.197 5.00mm is the lead spacing of this electrical device.Systems require a voltage of 400V (URac) for internal rated (AC) power.Temperatures of -55°C~125°C allow the device to operate.
