Name: B32523Q8224K289
Brand: TDK Electronics Inc.
SKU: B32523Q8224K289
Price: 0.49000 USD
Availability: InStock

new-10%

B32523Q8224K289

Manufacturer part number:B32523Q8224K289

Manufacturer:TDK Electronics Inc.

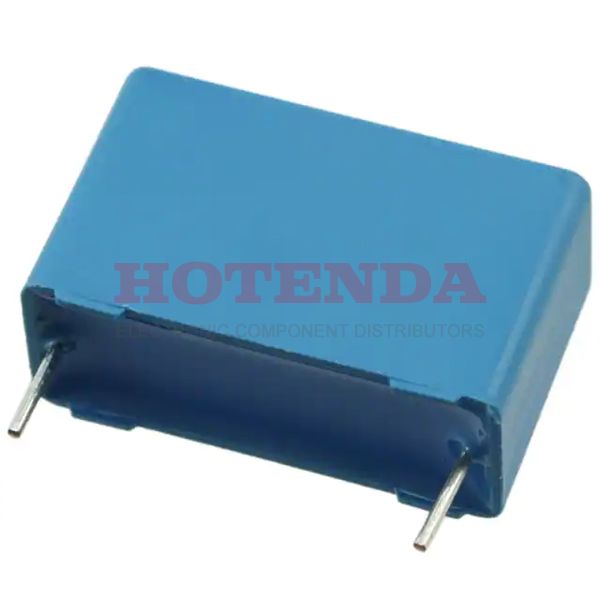

Description:B32523 0.22μF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polyester, Polyethylene Terephthalate (PET), Metallized

Case Package:SOT-23

Datasheet:B32523Q8224K289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized
Operating Temperature	-55°C~125°C
Packaging	Tape & Box (TB)
Series	B32523
Size / Dimension	1.043Lx0.276W 26.50mmx7.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	0.22μF
Voltage - Rated DC	630V
Packing Method	AMMO PACK
Terminal Pitch	22.5mm
Reference Standard	AEC-Q200
Voltage - Rated AC	200V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.886 22.50mm
Rated (DC) Voltage (URdc)	630V
Rated (AC) Voltage (URac)	200V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.630 16.00mm
Length	26.5mm
Width	7mm
RoHS Status	ROHS3 Compliant

B32523Q8224K289 Product Details

B32523Q8224K289 Overview

An internal (DC) voltage of 630V is required for systems to function.Electrical devices such as this have a lead spacing of 0.886 22.50mm.Systems require a voltage of 200V (URac) for internal rated (AC) power.The device is capable of operating at the temperature of -55°C~125°C.
