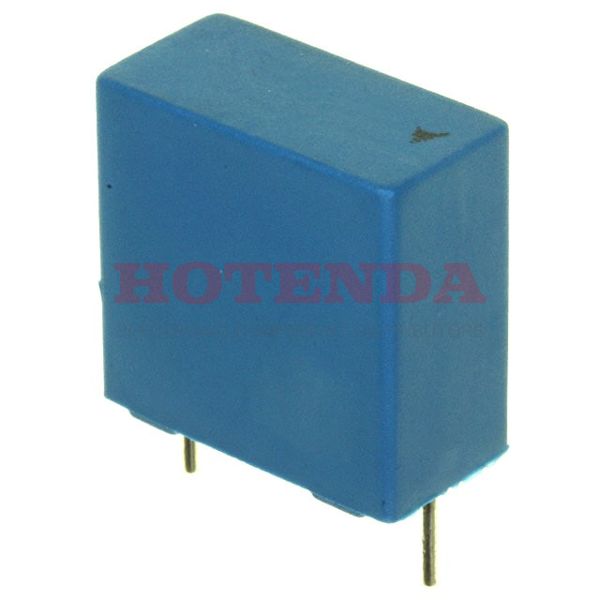

Name: B32522C1475K189
Brand: TDK Electronics Inc.
SKU: B32522C1475K189
Price: 2.47000 USD
Availability: InStock

new-10%

B32522C1475K189

Manufacturer part number:B32522C1475K189

Manufacturer:TDK Electronics Inc.

Description:B32522 4.7μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32522C1475K189 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	29 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	B32522
Size / Dimension	0.709Lx0.354W 18.00mmx9.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	4.7μF
Voltage - Rated DC	100V
Packing Method	TR
Terminal Pitch	15mm
Reference Standard	AEC-Q200
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	100V
Rated (AC) Voltage (URac)	63V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.689 17.50mm
Length	18mm
Width	9mm
RoHS Status	ROHS3 Compliant

B32522C1475K189 Product Details

B32522C1475K189 Overview

For systems to function, the rated (DC) voltage (URdc) must be 100V.This electrical device has a 0.591 15.00mm lead spacing.It is required that systems be powered by an internal rated (AC) voltage of 63V.Temperatures as low as -55°C~125°C are suitable for the device.
