Name: B32521N8103K000
Brand: TDK Electronics Inc.
SKU: B32521N8103K000
Price: 0.72000 USD
Availability: InStock

new-10%

B32521N8103K000

Manufacturer part number:B32521N8103K000

Manufacturer:TDK Electronics Inc.

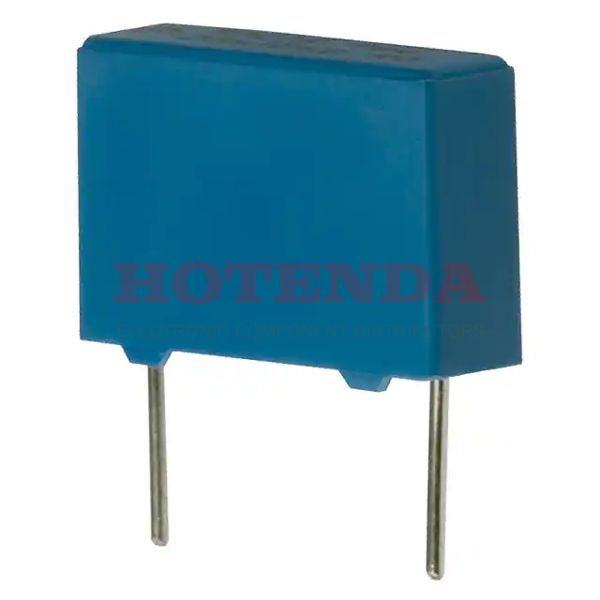

Description:B32521 10000pF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32521N8103K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2013
Series	B32521
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
Additional Feature	RATED AC VOLTAGE(V) : 200
HTS Code	8532.25.00.70
Capacitance	10000pF
Voltage - Rated DC	630V
Terminal Pitch	10mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	200V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.394 10.00mm
Rated (DC) Voltage (URdc)	630V
Size Code	5116
Rated (AC) Voltage (URac)	200V
Height	9mm
Length	13mm
Width	4mm
RoHS Status	ROHS3 Compliant

B32521N8103K000 Product Details

B32521N8103K000 Overview

For systems to operate, a rated (DC) voltage (URdc) of 630V must be applied internally.The lead spacing of this electrical device is 0.394 10.00mm.System power requires an AC voltage rating of 200V (URac).Temperatures of -55°C~125°C allow the device to operate.
