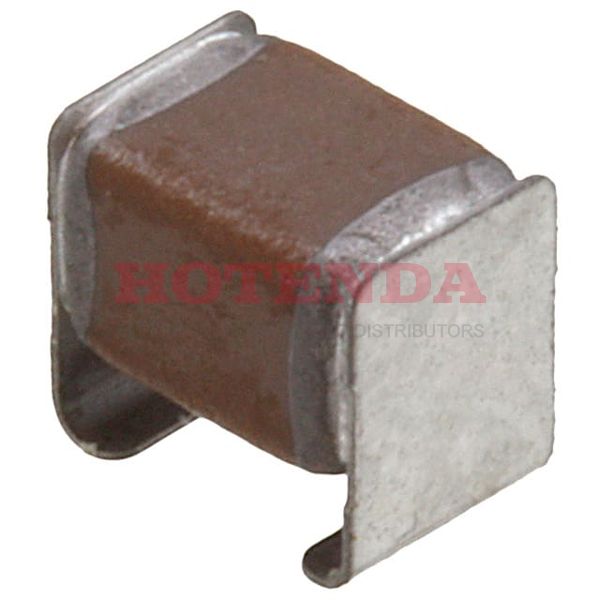

Name: CKG32KX7R2A105M335AJ
Brand: TDK Corporation
SKU: CKG32KX7R2A105M335AJ
Price: 4.50000 USD
Availability: InStock

new-10%

CKG32KX7R2A105M335AJ

Manufacturer part number:CKG32KX7R2A105M335AJ

Manufacturer:TDK Corporation

Description:CKG32KX7R2A105M335AJ datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available on our website

Case Package:SOT-23

Datasheet:CKG32KX7R2A105M335AJ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	Nonstandard SMD
Terminal Shape	J BEND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Cut Tape (CT)
Published	2012
Series	MEGACAP, CKG
Size / Dimension	0.142Lx0.102W 3.60mmx2.60mm
Tolerance	±20%
JESD-609 Code	e3
Feature	Low ESL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Metal
ECCN Code	EAR99
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Automotive, SMPS Filtering, Bypass, Decoupling
Voltage - Rated	100V
HTS Code	8532.24.00.20
Capacitance	1μF
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	100V
Size Code	1210
Thickness (Max)	0.136 3.45mm
Thickness	3.4544mm
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200

CKG32KX7R2A105M335AJ Product Details

CKG32KX7R2A105M335AJ Overview

A program's size/dimension is 0.142Lx0.102W 3.60mmx2.60mm for this device.Its coefficient is X7R and determines the change in resistance per degree of temperature for a substance.
