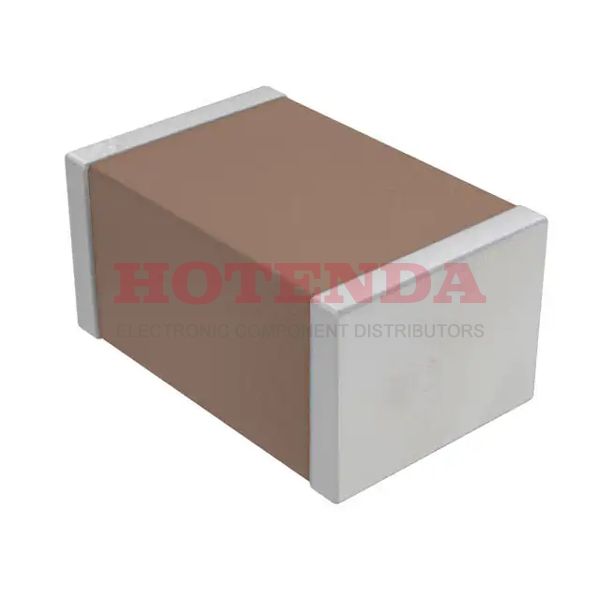

Name: CGA4J3X7R2E682M125AA
Brand: TDK Corporation
SKU: CGA4J3X7R2E682M125AA
Price: 0.26000 USD
Availability: InStock

new-10%

CGA4J3X7R2E682M125AA

Manufacturer part number:CGA4J3X7R2E682M125AA

Manufacturer:TDK Corporation

Description:CGA4J3X7R2E682M125AA datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available on our website

Case Package:SOT-23

Datasheet:CGA4J3X7R2E682M125AA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Lifecycle Status	PRODUCTION (NOT RECOMMENDED FOR NEW DESIGN) (Last Updated: 1 month ago)
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0805 (2012 Metric)
Terminal Shape	WRAPAROUND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2015
Series	CGA
Size / Dimension	0.079Lx0.049W 2.00mmx1.25mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Automotive
Voltage - Rated	250V
HTS Code	8532.24.00.20
Capacitance	6800pF
Packing Method	TR, 7 Inch
Case Code (Metric)	2012
Case Code (Imperial)	0805
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	250V
Height	1.25mm
Length	2mm
Width	1.25mm
Thickness (Max)	0.057 1.45mm
Thickness	1.4478mm
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200

CGA4J3X7R2E682M125AA Product Details

CGA4J3X7R2E682M125AA Overview

The size/dimension of the program on this device is 0.079Lx0.049W 2.00mmx1.25mm.This coefficient is determined by the change in electrical resistance of a substance as a function of temperature; in general, its coefficient is X7R.
