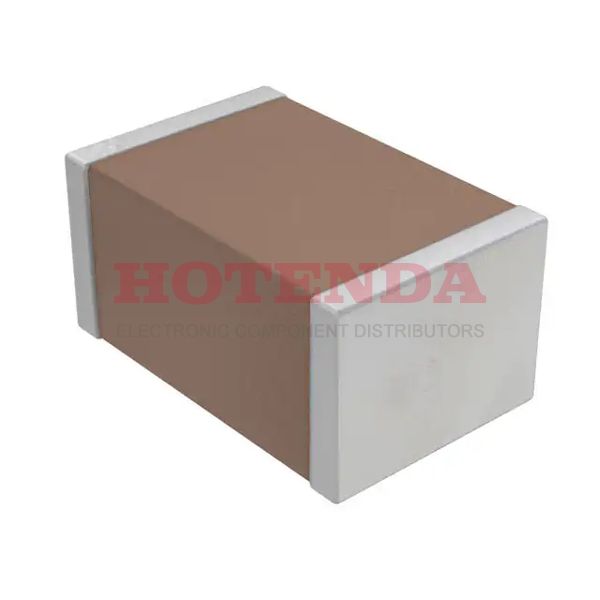

Name: CGA4J3X7R1V105M125AE
Brand: TDK Corporation
SKU: CGA4J3X7R1V105M125AE
Price: 0.10000 USD
Availability: InStock

new-10%

CGA4J3X7R1V105M125AE

Manufacturer part number:CGA4J3X7R1V105M125AE

Manufacturer:TDK Corporation

Description:CGA4J3X7R1V105M125AE datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available on our website

Case Package:SOT-23

Datasheet:CGA4J3X7R1V105M125AE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Lifecycle Status	PRODUCTION (Last Updated: 1 month ago)
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0805 (2012 Metric)
Terminal Shape	WRAPAROUND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2015
Series	CGA
Size / Dimension	0.079Lx0.049W 2.00mmx1.25mm
Tolerance	±20%
JESD-609 Code	e3
Feature	Soft Termination
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Automotive, Boardflex Sensitive
Voltage - Rated	35V
Capacitance	1μF
Packing Method	TR, 7 INCH
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	35V
Height	1.25mm
Length	2mm
Width	1.25mm
Thickness (Max)	0.059 1.50mm
Thickness	1.4986mm
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200

CGA4J3X7R1V105M125AE Product Details

CGA4J3X7R1V105M125AE Overview

The size/dimension of the program on this device is 0.079Lx0.049W 2.00mmx1.25mm.Its coefficient is X7R and determines the change in resistance per degree of temperature for a substance.
