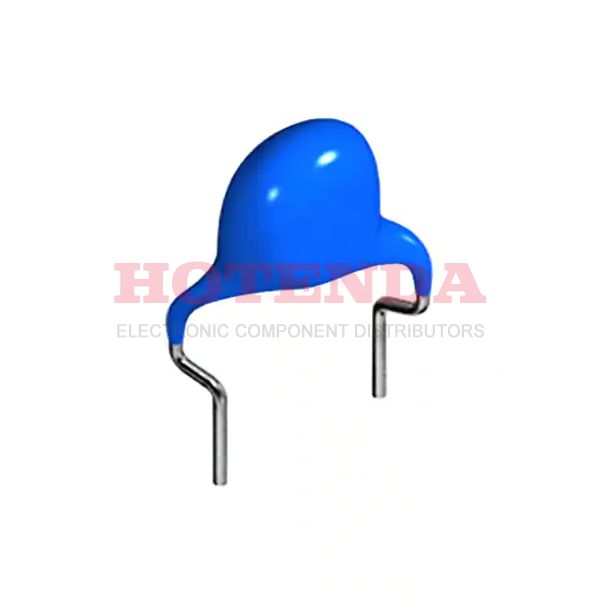

Name: CC45SL3JD050DYVNA
Brand: TDK Corporation
SKU: CC45SL3JD050DYVNA
Price: 0.48000 USD
Availability: InStock

new-10%

CC45SL3JD050DYVNA

Manufacturer part number:CC45SL3JD050DYVNA

Manufacturer:TDK Corporation

Description:CC45SL3JD050DYVNA datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available on our website

Case Package:SOT-23

Datasheet:CC45SL3JD050DYVNA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	PRODUCTION (Last Updated: 1 month ago)
Mounting Type	Through Hole
Package / Case	Radial, Disc
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	CERAMIC
Operating Temperature	-25°C~125°C
Packaging	Cut Tape (CT)
Published	2013
Series	CC45
Size / Dimension	0.295Dia 7.50mm
Tolerance	±0.5pF
JESD-609 Code	e3
Feature	High Voltage, Low Dissipation Factor
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	SL
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
Voltage - Rated	6000V 6kV
HTS Code	8532.23.00.60
Capacitance	5pF
Terminal Pitch	7.5mm
Capacitor Type	CERAMIC CAPACITOR
Lead Spacing	0.295 7.50mm
Temperature Characteristics Code	SL
Multilayer	No
Rated (DC) Voltage (URdc)	6000V
Size Code	3024
Lead Style	Formed Leads - Kinked
Height Seated (Max)	0.453 11.50mm
Length	7.5mm
Width	6mm
RoHS Status	ROHS3 Compliant

CC45SL3JD050DYVNA Product Details

CC45SL3JD050DYVNA Overview

For this device, the size/dimension of the program is 0.295Dia 7.50mm.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.
