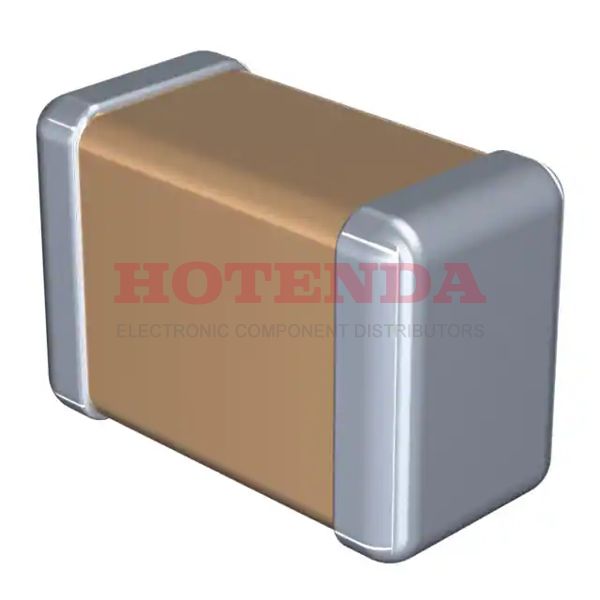

Name: C3216X7T2J153M085AC
Brand: TDK Corporation
SKU: C3216X7T2J153M085AC
Price: 0.39000 USD
Availability: InStock

new-10%

C3216X7T2J153M085AC

Manufacturer part number:C3216X7T2J153M085AC

Manufacturer:TDK Corporation

Description:C3216X7T2J153M085AC datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available on our website

Case Package:SOT-23

Datasheet:C3216X7T2J153M085AC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	PRODUCTION (NOT RECOMMENDED FOR NEW DESIGN) (Last Updated: 1 month ago)
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	1206 (3216 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2012
Series	C
Size / Dimension	0.126Lx0.063W 3.20mmx1.60mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	X7T
Applications	General Purpose
Voltage - Rated	630V
HTS Code	8532.24.00.20
Capacitance	0.015μF
Case Code (Metric)	3216
Case Code (Imperial)	1206
Temperature Characteristics Code	X7T
Multilayer	Yes
Rated (DC) Voltage (URdc)	630V
Height	0.85mm
Length	3.2mm
Width	1.6mm
Thickness (Max)	0.039 1.00mm
Thickness	990.6μm
RoHS Status	ROHS3 Compliant

C3216X7T2J153M085AC Product Details

C3216X7T2J153M085AC Overview

Programs on this device are of 0.126Lx0.063W 3.20mmx1.60mm size/dimension.Its coefficient is X7T and determines the change in resistance per degree of temperature for a substance.
