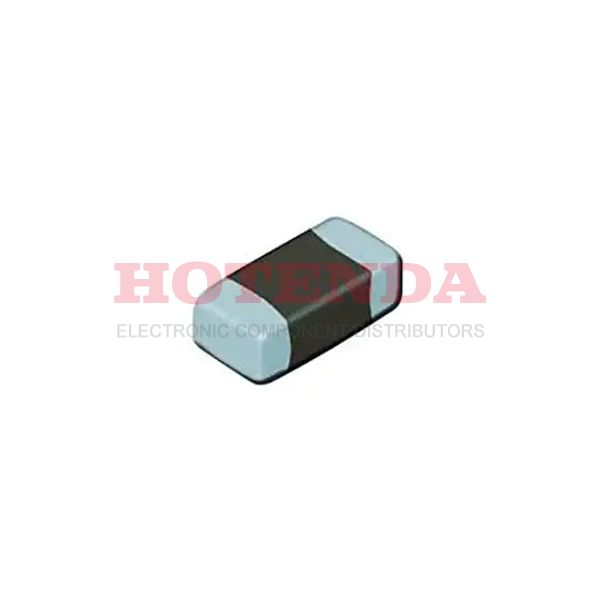

Name: JMK212B7475MGHT
Brand: Taiyo Yuden
SKU: JMK212B7475MGHT
Price: 0.26000 USD
Availability: InStock

new-10%

JMK212B7475MGHT

Manufacturer part number:JMK212B7475MGHT

Manufacturer:Taiyo Yuden

Description:M-H 4700000PF(pF) 6.3V Ceramic Capacitor 20% X7R 0.079 L x 0.049 W (2.00mm x 1.25mm) -55°C ~ 125°C Surface Mount, MLCC 0805

Case Package:SOT-23

Datasheet:JMK212B7475MGHT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	0805
Mounting Type	Surface Mount, MLCC
Number of Terminals	2
Mounting Style	Surface Mount
ECCN (US)	EAR99
Capacitance Value	4.7uF
Equivalent Series Resistance Type	Low
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	10
Size (mm)	2 X 1.25 X 1.25
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	1.25
Wire Form	Not Required
Operating Temp Range	-55C to 125C
Product Diameter (mm)	Not Required(mm)
Temp Coeff (Dielectric)	X7R
Lead Diameter (nom)	Not Required(mm)
Tolerance (+ or -)	20%
Rad Hardened	No
Seated Plane Height	Not Required(mm)
Qualification	AEC-Q200
Capacitance Tolerance	± 20%
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Manufacturer	Taiyo Yuden
Brand	Taiyo Yuden
RoHS	Details
Class	Class 2
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	JMK212B
Mfr	Taiyo Yuden
Product Status	Active
Height - Seated (Max)	-
Packaging	Tape and Reel
Series	M-H
Operating Temperature	-55°C ~ 125°C
Size / Dimension	0.079 L x 0.049 W (2.00mm x 1.25mm)
Tolerance	20%
Part Status	Active
Termination	Standard
Temperature Coefficient	X7R
Type	Multilayer Ceramic Capacitor
Applications	Automotive
Voltage - Rated	6.3V
Capacitance	4700000PF(pF)
Subcategory	Capacitors
Construction	Flat
Termination Style	Pad
Dielectric	X7R
Failure Rate	Not Required
Lead Spacing	-
Voltage	6.3VDC
Lead Style	-
Product Type	Ceramic Capacitors
Product	General Type MLCCs
Features	-
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Product Length	2.01mm
Product Width	1.25mm
Product Length (mm)	2
Width	1.25 mm
Height	1.25 mm
Length	2 mm
Thickness (Max)	0.053 (1.35mm)
Product Height (mm)	1.25
RoHS Status	RoHS Compliant
Ratings	AEC-Q200

JMK212B7475MGHT Product Details

JMK212B7475MGHT Overview

A 0.079 L x 0.049 W (2.00mm x 1.25mm) size/dimension program is available for this device.Using this device, the capacitance value is 4.7uF, which is the ratio between the electric charge on each conductor and the potential difference (i.e., voltage) between them.Temperature coefficient of resistance consists of the change in electrical resistance of a substance with respect to each degree change in temperature, and it is X7R.

JMK212B7475MGHT Features

a size/dimension of 0.079 L x 0.049 W (2.00mm x 1.25mm)
a capacitance value of 4.7uF
with X7R being the highest temperature coefficient

JMK212B7475MGHT Applications

There are a lot of Taiyo Yuden
JMK212B7475MGHT applications of ceramic capacitors.

General electronic equipment
Mobile devices
Servers, PCs, tablets
Power supply circuit

Quantity	Unit Price	Ext. Price
1	$0.098410	$0.09841
500	$0.072360	$36.18
1000	$0.060300	$60.3
2000	$0.055321	$110.642
5000	$0.051702	$258.51
10000	$0.048095	$480.95
15000	$0.046513	$697.695
50000	$0.045736	$2286.8
