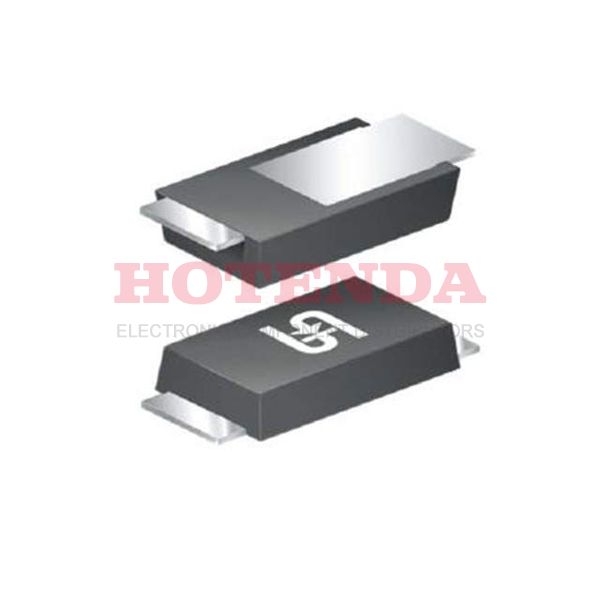

SS13LSHRVG

SS13LSHRVG

Taiwan Semiconductor Corporation

SS13LSHRVG datasheet pdf and Diodes - Rectifiers - Single product details from Taiwan Semiconductor Corporation stock available on our website

SOT-23

SS13LSHRVG Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 10 Weeks
Mounting Type Surface Mount
Package / Case SOD-123H
Surface MountYES
Diode Element Material SILICON
PackagingDigi-Reel®
Published 2015
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Additional FeatureLOW POWER LOSS
Terminal Position DUAL
Terminal FormFLAT
Reference Standard AEC-Q101
JESD-30 Code R-PDSO-F2
Operating Temperature (Max) 125°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 400μA @ 30V
Voltage - Forward (Vf) (Max) @ If 500mV @ 1A
Case Connection CATHODE
Operating Temperature - Junction -55°C~125°C
Output Current-Max 1A
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Rep Pk Reverse Voltage-Max 30V
Capacitance @ Vr, F 80pF @ 4V 1MHz
RoHS StatusROHS3 Compliant
In-Stock:17498 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.086181$0.086181
500$0.063368$31.684
1000$0.052806$52.806
2000$0.048446$96.892
5000$0.045277$226.385
10000$0.042118$421.18
15000$0.040733$610.995
50000$0.040052$2002.6

SS13LSHRVG Product Details

SS13LSHRVG Overview


1A represents the maximum output current.

SS13LSHRVG Features


1A is the maximum value

SS13LSHRVG Applications


There are a lot of Taiwan Semiconductor Corporation SS13LSHRVG applications of single-phase diode rectifier.

  • Recirculating Diode
  • Polarity Protection Diode
  • Freewheeling
  • Reverse Polarity Protection
  • Switching Diode
  • Battery chargers
  • Ultra High-Speed Switching
  • Welders
  • Power converters
  • DC motor control and drives
