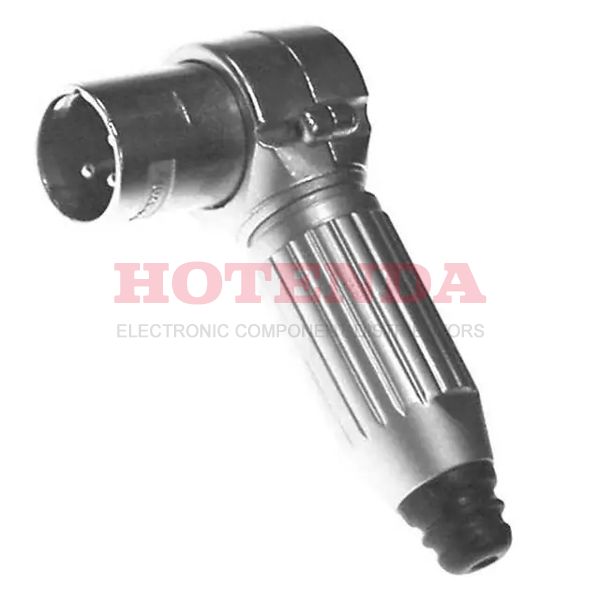

R3MZ

R3MZ

R3MZ

Switchcraft Inc.

Receptacle, Male PinsZinc AlloyFree Hanging (In-Line), Right Angle3 PositionsSolder CupSilverNickelBulkKeyedLatch Lock

SOT-23

R3MZ Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCopper Alloy
Contact PlatingNickel, Silver
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case Metal
Shell Material Zinc Alloy
Insert Material Thermoplastic
Backshell Material, Plating Zinc Alloy, Nickel
PackagingBulk
Published 2008
Series Q-G® R
JESD-609 Code e4
Feature Backshell, Cable Clamp, Ground, Strain Relief
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 3
Applications Audio, Industrial, Instrumentation, Medical
Gender Male
Voltage - Rated 125VAC
Fastening TypeLatch Lock
Contact Finish - Mating Silver
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Keyed
Depth 27.5mm
Reach Compliance Code not_compliant
Current Rating15A
Shell Finish Nickel
Shell Size - Insert XLR
Body/Shell Style PLUG
Number of Ports1
Number of Poles 3
Cable Opening 0.100 ~ 0.285 (2.54mm ~ 7.24mm)
Diameter 24.4mm
Length 40.25mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:634 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$9.179276$9.179276
10$8.659695$86.59695
100$8.169523$816.9523
500$7.707097$3853.5485
1000$7.270847$7270.847

R3MZ Product Details

R3MZ Overview


The packaging contains Receptacle, Male Pins.Free Hanging (In-Line), Right Angle is the mounting type for the device.Packaged in a Bulk case.Among the products in the Q-G® R Series, it is one of the most popular.In the packaging marked Metal, there is a device enclosed.A number of features make the Backshell, Cable Clamp, Ground, Strain Relief feature more powerful.There's a Cable, Free Hanging mount on the part.

R3MZ Features


Q-G® R series

R3MZ Applications


There are a lot of Switchcraft Inc. R3MZ Circular Connectors applications.

  • Medical technology
  • LED municipal outdoor and street lighting
  • Transportation
  • All Electrical Machinery
  • Datacom
  • Variable speed/frequency drivers
  • Electrical substations
  • Measuring & Control Technology
  • Embedded systems
  • Automotive Electronics
