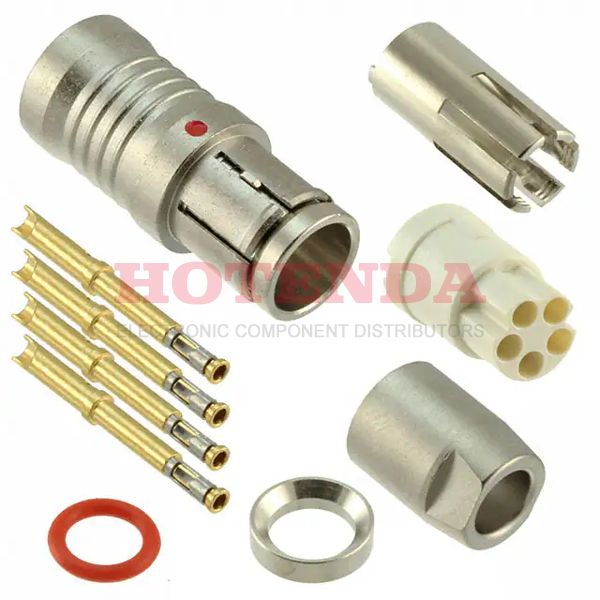

Name: HS2C5F20C
Brand: Switchcraft Inc.
SKU: HS2C5F20C
Price: 32.38000 USD
Availability: InStock

new

HS2C5F20C

Manufacturer part number:HS2C5F20C

Manufacturer:Switchcraft Inc.

Description:Plug, Female SocketsCopper AlloyFree Hanging (In-Line)5 PositionsCrimp or Solder CupGoldElectroless NickelBulkKeyedPush-Pull

Case Package:SOT-23

Datasheet:HS2C5F20C Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Shell Material	Copper Alloy
Insert Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C~135°C
Packaging	Bulk
Published	2016
Series	Dura-Pull™, HS
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp or Solder Cup
Connector Type	Plug, Female Sockets
Number of Positions	5
Color	Silver
Applications	Agriculture, Audio, General, Medical, Testing Equipment & Measurement
Voltage - Rated	125VAC/DC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Orientation	Keyed
Shielding	Shielded
Ingress Protection	IP66/67/68 - Dust Tight, Water Resistant, Waterproof
Shell Finish	Electroless Nickel
Body Plating	Electroless Nickel
Cable Opening	0.180 ~ 0.216 (4.57mm ~ 5.49mm)
Material Flammability Rating	UL94 HF-1
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Ratings	Dust Tight, IP66, Water Resistant, Waterproof

HS2C5F20C Product Details

HS2C5F20C Overview

This product is packaged in a Plug, Female Sockets box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Dura-Pull™, HS Series.By Free Hanging, the part is mounted.Operating temperature is set to -40°C~135°C.
