Name: EN3P4MRAPCBN
Brand: Switchcraft Inc.
SKU: EN3P4MRAPCBN
Price: 11.40000 USD
Availability: InStock

new

EN3P4MRAPCBN

Manufacturer part number:EN3P4MRAPCBN

Manufacturer:Switchcraft Inc.

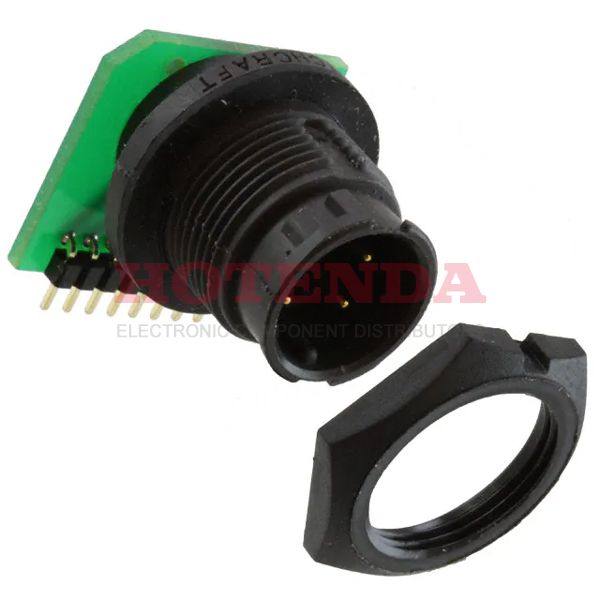

Description:Receptacle, Male Pins Thermoplastic Panel Mount, Through Hole, Right Angle 4 Positions Circuit Board, Solder Gold Bulk Keyed Bayonet Lock

Case Package:SOT-23

Datasheet:EN3P4MRAPCBN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Bulkhead, Panel, Through Hole
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Shell Material	Thermoplastic
Insert Material	Elastomer
Operating Temperature	-40°C~65°C
Packaging	Bulk
Series	EN3®
Published	2012
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Circuit Board, Solder
ECCN Code	EAR99
Connector Type	Receptacle, Male Pins
Number of Positions	4
Color	Black
Applications	General Purpose, Instrumentation, Marine, Medical
Voltage - Rated	250VAC/DC
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
Orientation	Keyed
Shielding	Unshielded
Ingress Protection	IP66/68 - Dust Tight, Water Resistant, Waterproof
Current Rating	5A
Contact Gender	Male
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Ratings	Dust Tight, IP66, IP68, Water Resistant, Waterproof

EN3P4MRAPCBN Product Details

EN3P4MRAPCBN Overview

Packaging for this item is Receptacle, Male Pins.There is a mounting type of Panel Mount, Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the EN3® Series.Bulkhead, Panel, Through Hole is used to mount the part.In this case, the device operates at -40°C~65°C Operating Temperature.
