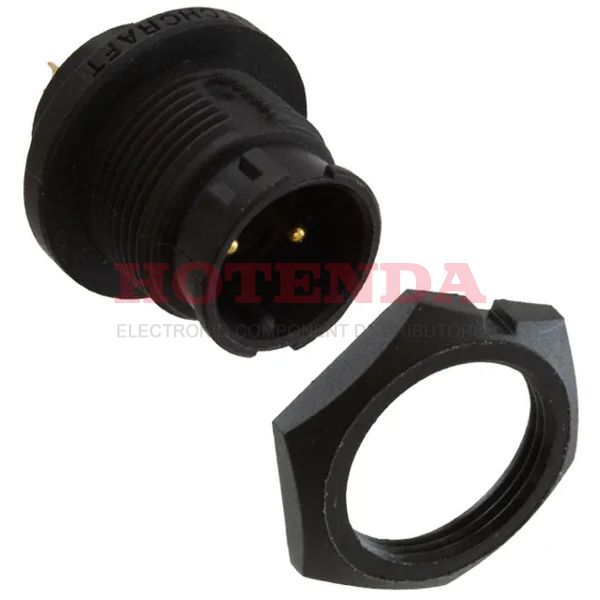

Name: EN3P2M16X
Brand: Switchcraft Inc.
SKU: EN3P2M16X
Price: 6.09000 USD
Availability: InStock

new-10%

EN3P2M16X

Manufacturer part number:EN3P2M16X

Manufacturer:Switchcraft Inc.

Description:Receptacle, Male PinsThermoplasticPanel Mount2 PositionsSolder CupGoldBulkKeyedBayonet Lock

Case Package:SOT-23

Datasheet:EN3P2M16X Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Bulkhead, Front Side Nut, Panel
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut
Shell Material	Thermoplastic
Insert Material	Elastomer
Operating Temperature	-40°C~65°C
Packaging	Bulk
Published	2000
Series	EN3®
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder Cup
ECCN Code	EAR99
Connector Type	Receptacle, Male Pins
Number of Positions	2
Color	Black
Applications	General Purpose, Instrumentation, Marine, Medical
Gender	Female
Voltage - Rated	250VAC/DC
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
Total Number of Contacts	2
Orientation	Keyed
Shielding	Unshielded
Ingress Protection	IP66/68 - Dust Tight, Water Resistant, Waterproof
Current Rating	13A
Reference Standard	UL
Contact Gender	Male
Body Depth	0.53 inch
Max Current Rating	3A
Length	24.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Ratings	Dust Tight, IP16, IP66, Water Resistant, Waterproof

EN3P2M16X Product Details

EN3P2M16X Overview

Currently, it is packaged in Receptacle, Male Pins.The device's mounting type is Panel Mount.We pack the product in a Bulk case.As a product of the EN3® Series, it can be found in this category.You've got Bulkhead, Front Side Nut, Panel mounted on the part.Operating temperature is -40°C~65°C.
