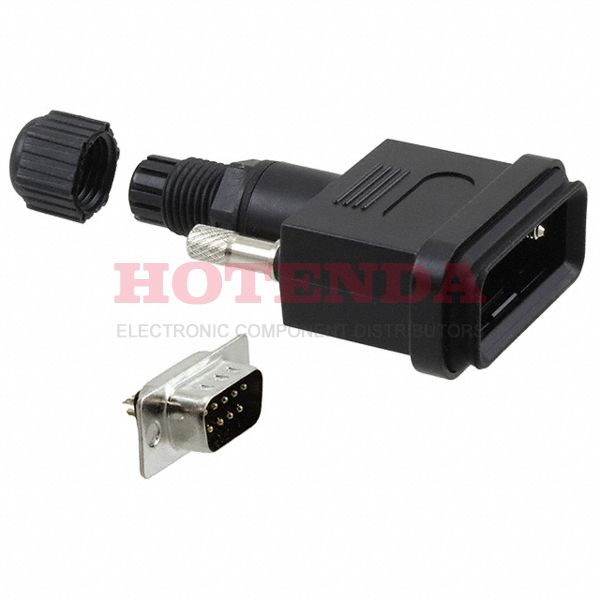

Name: DCCDB09M
Brand: Switchcraft Inc.
SKU: DCCDB09M
Price: 23.67000 USD
Availability: InStock

new

DCCDB09M

Manufacturer part number:DCCDB09M

Manufacturer:Switchcraft Inc.

Description:DCCDB09M datasheet pdf and D-Sub Connectors product details from Switchcraft Inc. stock available on our website

Case Package:SOT-23

Datasheet:DCCDB09M Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Dielectric Material	Thermoplastic
Body Material	Steel
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~85°C
Packaging	Bulk
Published	2010
Series	DATA-CON-X® DCC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Plug, Male Pins
Number of Positions	9
Color	Black
Number of Rows	2
Gender	Male
Contact Type	Signal
Orientation	Straight
Ingress Protection	IP67 - Dust Tight, Waterproof
Current Rating	5A
Contact Finish	Gold
Wire Gauge	22-26 AWG
Flange Feature	Cable Side, Male Jackscrew
Plating	Tin
Connector Support Type	CONNECTOR ACCESSORY
Connector Style	D-Sub
Shell Size, Connector Layout	1 DE E
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Ratings	Dust Tight, IP67, Waterproof

DCCDB09M Product Details

DCCDB09M Overview

Plug, Male Pins packaging is included.This device has a mounting type of Free Hanging (In-Line).This product is packaged in a case marked Bulk.It's from the DATA-CON-X? DCC Series.The part is mounted by Free Hanging.It runs at -55°C~85°C Operating Temperature.
