Name: PEC32DACN
Brand: Sullins Connector Solutions
SKU: PEC32DACN
Price: 5.12000 USD
Availability: InStock

new-10%

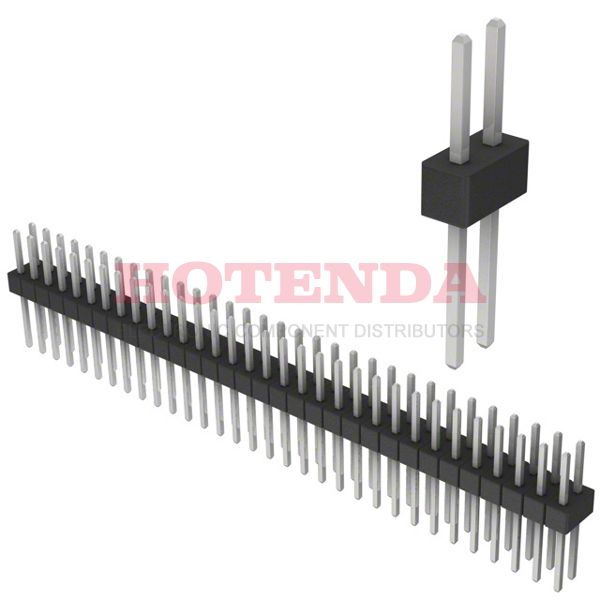

PEC32DACN

Manufacturer part number:PEC32DACN

Manufacturer:Sullins Connector Solutions

Description:2-Row Header, Breakaway Solder Phosphor Bronze Bulk Through Hole Tin Polybutylene Terephthalate (PBT) 64-Position Board to Board or Cable 0.100 2.54mm Height

Case Package:SOT-23

Datasheet:PEC32DACN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Housing Material	Plastic
Operating Temperature	-65°C~125°C
Packaging	Bulk
Published	2005
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	64
Number of Rows	2
Gender	Male
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Current Rating (Amps)	3A
Insulation Height	0.100 2.54mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.320 8.13mm
Shrouding	Unshrouded
Contact Length - Mating	0.230 5.84mm
Housing Color	Black
Overall Contact Length	0.650 16.51mm
Height	2.54mm
Length	81.3mm
Width	5.08mm
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PEC32DACN Product Details

PEC32DACN Overview

It comes in Header, Breakaway packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.The part is mounted by Through Hole.The device runs in -65°C~125°C Operating Temperature.
