PEC09SADN

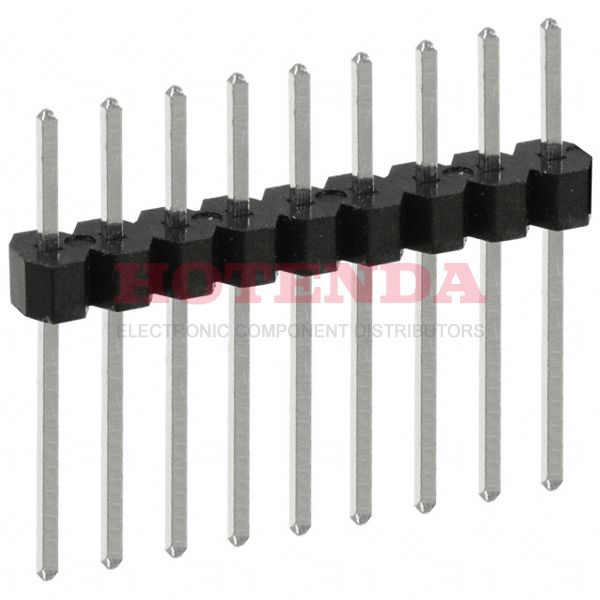

  • PEC09SADN - 1-Row Header, Breakaway Solder Phosphor Bronze Bulk Through Hole Tin Polybutylene Terephthalate (PBT) 9-Position Board to Board or Cable 0.100 2.54mm Height
  • PEC09SADN - 1-Row Header, Breakaway Solder Phosphor Bronze Bulk Through Hole Tin Polybutylene Terephthalate (PBT) 9-Position Board to Board or Cable 0.100 2.54mm Height

PEC09SADN

PEC09SADN

Sullins Connector Solutions

1-Row Header, Breakaway Solder Phosphor Bronze Bulk Through Hole Tin Polybutylene Terephthalate (PBT) 9-Position Board to Board or Cable 0.100 2.54mm Height

SOT-23

PEC09SADN Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Contact MaterialPhosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Operating Temperature-65°C~125°C
PackagingBulk
Published 2005
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 9
Number of Rows 1
Gender Male
Fastening TypePush-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.420 10.67mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.230 5.84mm
Housing Color Black
Overall Contact Length 0.750 19.05mm
Height 2.54mm
Length 22.9mm
Width 2.54mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:8909 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.90000$0.9
10$0.78800$7.88
25$0.74160$18.54
50$0.71080$35.54
100$0.67980$67.98
250$0.61800$154.5
500$0.55620$278.1

PEC09SADN Product Details

PEC09SADN Overview


The product comes in a package of Header, Breakaway.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.It is mounted by Through Hole.It operates at an operating temperature of -65°C~125°C.

PEC09SADN Features




PEC09SADN Applications


There are a lot of Sullins Connector Solutions
PEC09SADN Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
