PBC23SBCN

  • PBC23SBCN - 1-Row Header, Breakaway Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 23-Position Board to Board or Cable 0.140 3.56mm Height
  • PBC23SBCN - 1-Row Header, Breakaway Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 23-Position Board to Board or Cable 0.140 3.56mm Height

PBC23SBCN

PBC23SBCN

Sullins Connector Solutions

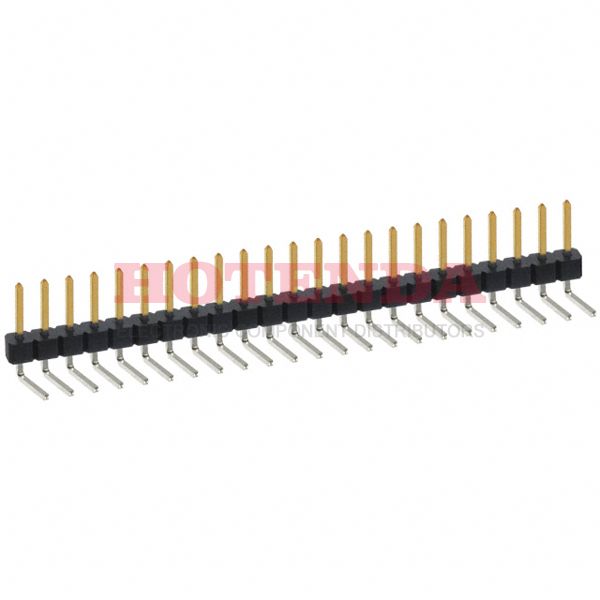

1-Row Header, Breakaway Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 23-Position Board to Board or Cable 0.140 3.56mm Height

SOT-23

PBC23SBCN Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Contact MaterialPhosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Operating Temperature-65°C~125°C
PackagingBulk
Published 2005
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 23
Number of Rows 1
Gender Male
Fastening TypePush-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.140 3.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.300 7.62mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
Housing Color Black
Height 3.56mm
Length 58.4mm
Width 2.54mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:2893 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.03000$3.03
10$2.90700$29.07
25$2.66480$66.62
50$2.54380$127.19
100$2.42270$242.27
250$2.11984$529.96
500$2.05926$1029.63

PBC23SBCN Product Details

PBC23SBCN Overview


The packaging is Header, Breakaway.Mounting type is Through Hole, Right Angle.To package the product, we use a Bulk case.Mounted by Through Hole.Device runs at -65°C~125°C Operating Temperature.

PBC23SBCN Features




PBC23SBCN Applications


There are a lot of Sullins Connector Solutions
PBC23SBCN Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
