Name: NRPN102PAEN-RC
Brand: Sullins Connector Solutions
SKU: NRPN102PAEN-RC
Price: 0.86000 USD
Availability: InStock

new-10%

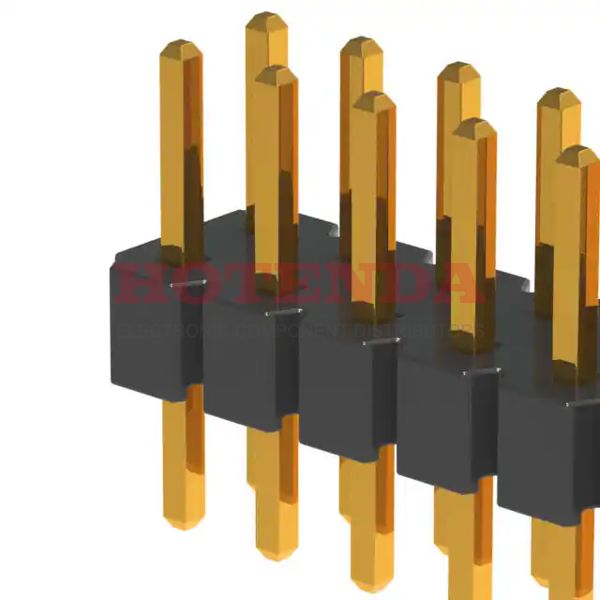

NRPN102PAEN-RC

Manufacturer part number:NRPN102PAEN-RC

Manufacturer:Sullins Connector Solutions

Description:NRPN102PAEN-RC datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Sullins Connector Solutions stock available on our website

Case Package:SOT-23

Datasheet:NRPN102PAEN-RC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA6T), Nylon 6T
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2008
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Header
Number of Positions	20
Number of Rows	2
Voltage - Rated	150V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.079 2.00mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	2A
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.787 inch
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.110 2.79mm
Shrouding	Unshrouded
Number Of PCB Rows	2
Contact Length - Mating	0.141 3.60mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.157 inch
Body Depth	0.079 inch
Rated Current (Signal)	1A
Overall Contact Length	0.330 8.38mm
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.079 inch
Dielectric Withstanding Voltage	500VAC V
Height	5.95mm
Contact Finish Thickness - Mating	Flash
Length - Termination	0.11 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

NRPN102PAEN-RC Product Details

NRPN102PAEN-RC Overview

This product is packaged in a Header cartonThis device is mounted in the Through Hole position.In order to package the product, a Bulk case is used.There is a mounting hole at Through Hole.Running in -40°C~105°C Operating Temperature.
