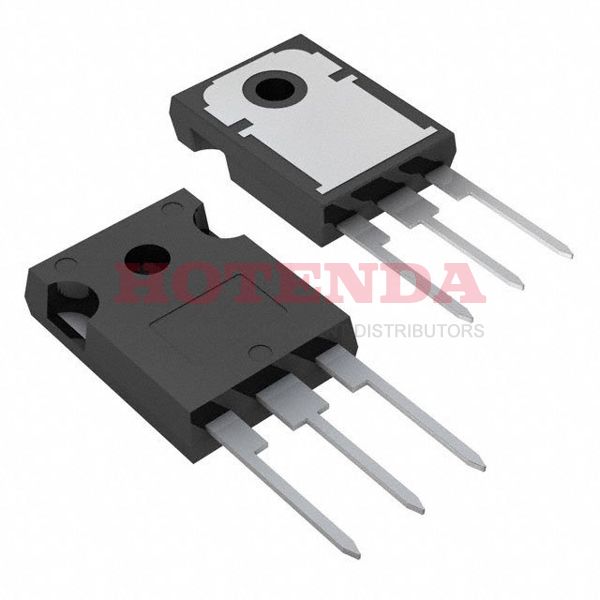

VNW50N04

Manufacturer part number:VNW50N04

Manufacturer:STMicroelectronics

Description:N-Channel PMIC OMNIFET?, VIPower? Series VNW50 TO-247-3

Case Package:SOT-23

Datasheet:VNW50N04 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-3
Packaging	Tube
Series	OMNIFET™, VIPower™
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Voltage - Rated DC	42V
Max Power Dissipation	208W
Technology	MOS
Terminal Position	SINGLE
Number of Functions	1
Current Rating	50A
Base Part Number	VNW50
Pin Count	3
JESD-30 Code	R-PSFM-T3
Number of Outputs	1
Output Type	N-Channel
Max Output Current	35A
Interface	On/Off
Output Configuration	Low Side
Power Dissipation	208W
Voltage - Supply (Vcc/Vdd)	Not Required
Supply Current-Max	0.5mA
Input Type	Non-Inverting
Switch Type	General Purpose
Output Characteristics	OPEN-DRAIN
Continuous Drain Current (ID)	50A
Output Polarity	TRUE
Ratio - Input:Output	1:1
Input Characteristics	SCHMITT TRIGGER
Voltage - Load	35V Max
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage
Drain to Source Breakdown Voltage	42V
Turn On Time	3 μs
Output Peak Current Limit-Nom	50A
Rds On (Typ)	12m Ω (Max)
Drain to Source Resistance	12mOhm
Turn Off Time	25 μs
Built-in Protections	TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Output Current Flow Direction	SINK
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

VNW50N04 Product Details

VNW50N04 Overview

As you can see, it's packaged in the way of a Tube.It's included in the TO-247-3 package.Mounting type Through Hole is selected for the LED driving board.This switch is of type General Purpose.There are 1 outputs available on this lighting driver.In order to operate, it requires a voltage supply of Not Required.The maximum output voltage of this LED driver is N-Channel volts.It is part of the VNW50 family of LED drivers.As a result, there are 3 terminations.Currently, there are 1 functions associated with the lighting driver.Maximum output current falls to 35A when operation criteria are met.This lighting driver is mounted in the way of Through Hole.There are 3 pins in total on this board.This electrical component is included in the OMNIFET?, VIPower? series.
