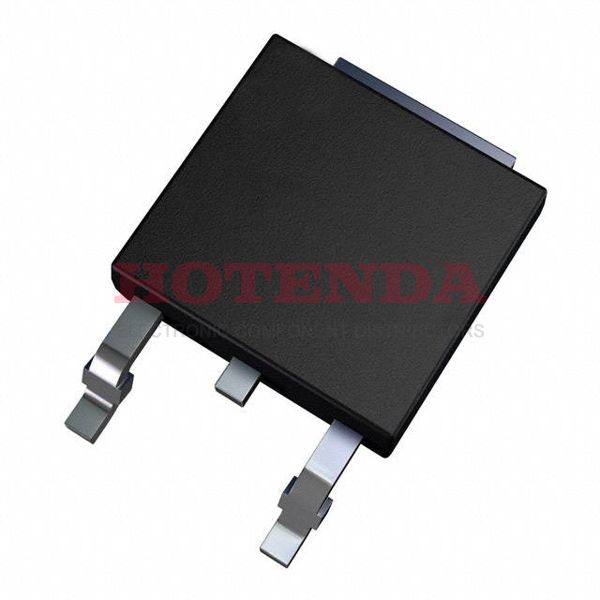

Name: VND7N04TR-E
Brand: STMicroelectronics
SKU: VND7N04TR-E
Availability: InStock

new-10%

VND7N04TR-E

Manufacturer part number:VND7N04TR-E

Manufacturer:STMicroelectronics

Description:N-Channel 2.25mm PMIC OMNIFET II?, VIPower? Series VND7N 3 Pin TO-252-3, DPak (2 Leads + Tab), SC-63

Case Package:SOT-23

Datasheet:VND7N04TR-E Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	NRND (Last Updated: 7 months ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Operating Temperature	-40°C~150°C TJ
Packaging	Tape & Reel (TR)
Series	OMNIFET II™, VIPower™
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
ECCN Code	EAR99
Resistance	60mOhm
Terminal Finish	Matte Tin (Sn) - annealed
Max Power Dissipation	60W
Technology	MOS
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	2.25mm
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	VND7N
Pin Count	3
JESD-30 Code	R-PSSO-G2
Number of Outputs	1
Qualification Status	Not Qualified
Output Type	N-Channel
Max Output Current	9A
Interface	On/Off
Nominal Supply Current	250μA
Output Configuration	Low Side
Power Dissipation	60W
Output Current	4A
Voltage - Supply (Vcc/Vdd)	Not Required
Input Type	Non-Inverting
Switch Type	General Purpose
Nominal Input Voltage	18V
Continuous Drain Current (ID)	7A
Ratio - Input:Output	1:1
Voltage - Load	31V Max
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage
Drain to Source Breakdown Voltage	42V
Turn On Time	0.5 µs
Output Peak Current Limit-Nom	7A
Rds On (Typ)	140m Ω (Max)
Drain to Source Resistance	140mOhm
Turn Off Time	7 µs
Built-in Protections	TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Height Seated (Max)	2.4mm
Length	6.5mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

VND7N04TR-E Product Details

VND7N04TR-E Overview

The package is in the form of a Tape & Reel (TR).There is a package for it in the TO-252-3, DPak (2 Leads + Tab), SC-63 package.It has been mounted as Surface Mount on the LED driver.The switch type is General Purpose.Ensure reliable operation by setting the temperature to -40°C~150°C TJ.The lighting driver has a total of 1 outputs that are available for use.The LED driving board operates at Not Required volts.It has a maximum output voltage of N-Channel volts.It is a member of the VND7N family.It contains 2 terminations.The 3 pins are used to operate the LED driver.The LED driving board has a total of 1 functions.This operation requires the maximum output current to be decreased to 9A.The LED driving board is mounted in the way of Surface Mount.The LED driver has a total of 3 pins.In this case, there is 60mOhm resistance in the LED driving board.It is part of the OMNIFET II?, VIPower? series.It is set to 4A in this case.
