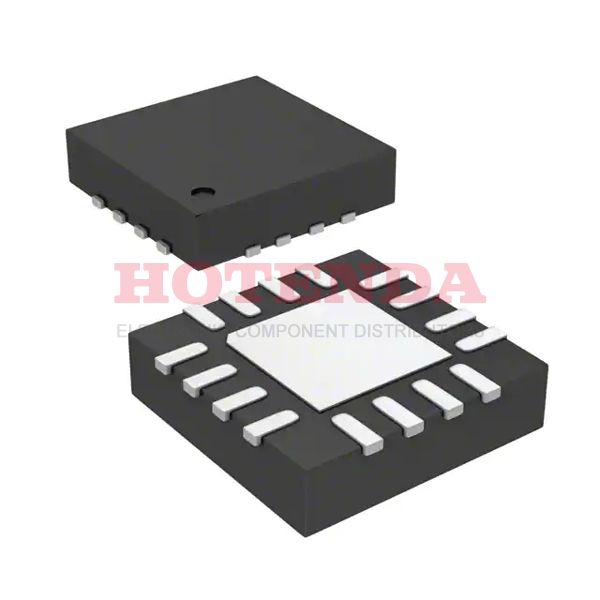

Name: STUSB02EQR
Brand: STMicroelectronics
SKU: STUSB02EQR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Number of Pins	16
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Transceiver
Terminal Finish	Matte Tin (Sn) - annealed
Subcategory	Line Driver or Receivers
Voltage - Supply	4V~5.5V
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	3.6V
Terminal Pitch	0.5mm
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	STUSB02
Pin Count	16
Operating Supply Voltage	6V
Power Supplies	3.3/5V
Data Rate	12Mbps
Differential Output	YES
Protocol	USB 2.0
Input Characteristics	DIFFERENTIAL
Number of Drivers/Receivers	1/1
Driver Number of Bits	1
Receiver Number of Bits	1
Duplex	Half
Receiver Hysteresis	100mV
Interface Standard	GENERAL PURPOSE
Number of Transceivers	1
Receive Delay-Max	20 ns
Transmit Delay-Max	20 ns
Supply Voltage1-Nom	5V
Output Low Current-Max	0.00002A
Length	3mm
Width	3mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

STUSB02EQR Product Details

STUSB02EQR Overview

Driver ICs with enhanced 16-VFQFN Exposed Pad packages are excellent for driving LEDs with common characteristics.In the Tape & Reel (TR) package, this receiver is mounted.This Transceiver can transceiver is a versatile part that has enabled many solutions to serve a variety of purposes.Any Surface Mount-type PCB or development board can be used with this wide receiver.It takes 4V~5.5V from the power supply to run this differential driver.This electronic part can have?up to 1/1 eligible receivers/drivers on the field at once.?As its name implies, this ic receiver is designed for applications where -40°C~85°C is the operating temperature.There is a voltage range of 3.6V for this line driver ic, so it can operate efficiently.In this wide receiver, 16 terminations are integrated for driving and receiving signals from data.This transceiver is packaged with 16 market standard pinoutsSince the base part number STUSB02 uniquely identifies the product type, temperature, package, etc., you can use it to find more variations.16-pin driver IC with improved power dissipation control.The package size of this optical transceiver has been dramatically reduced by downsizing ICs and using high-density Surface Mount mounting techniques.It provided a 1-bit resolution capability with this ic receiver.In the case of this receiver, a resolution of 1 bits is typically specified.There are two types of input voltage supply available for this IC, 6V.A subcategory named Line Driver or Receivers can be used to group this rf transceiver module.IC3.3/5V is a high performance driver IC designed to work with a 3.3/5V power supply.There are 1 transceivers in total that this module isolated transceiver implements.
