Name: STP25NM60N
Brand: STMicroelectronics
SKU: STP25NM60N
Availability: InStock

new-10%

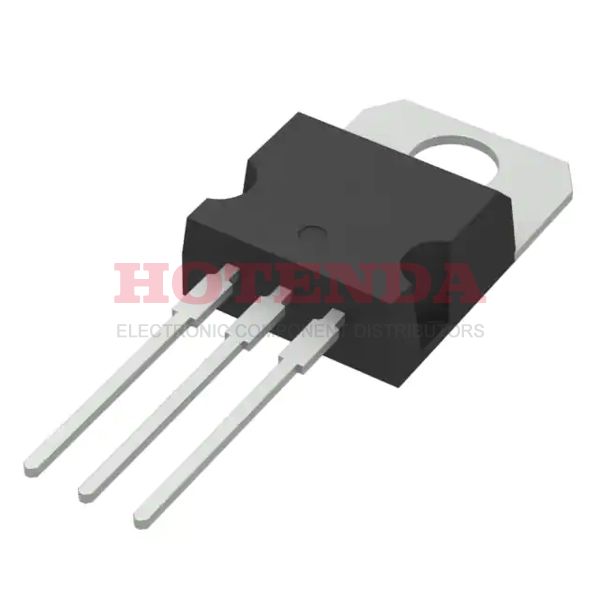

STP25NM60N

Manufacturer part number:STP25NM60N

Manufacturer:STMicroelectronics

Description:STP25NM60N datasheet pdf and Transistors - FETs, MOSFETs - Single product details from STMicroelectronics stock available on our website

Case Package:SOT-23

Datasheet:STP25NM60N Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	150°C TJ
Packaging	Tube
Series	MDmesh™ II
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Resistance	160mOhm
Terminal Finish	Tin (Sn)
Voltage - Rated DC	600V
Technology	MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
Current Rating	20A
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	STP25N
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	1
Voltage	650V
Power Dissipation-Max	160W Tc
Element Configuration	Single
Current	20A
Operating Mode	ENHANCEMENT MODE
Power Dissipation	160W
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	160m Ω @ 10.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	2400pF @ 50V
Current - Continuous Drain (Id) @ 25°C	21A Tc
Gate Charge (Qg) (Max) @ Vgs	84nC @ 10V
Rise Time	18ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±25V
Fall Time (Typ)	24 ns
Turn-Off Delay Time	94 ns
Continuous Drain Current (ID)	21A
JEDEC-95 Code	TO-220AB
Gate to Source Voltage (Vgs)	25V
Drain to Source Breakdown Voltage	600V
Avalanche Energy Rating (Eas)	850 mJ
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

STP25NM60N Product Details

STP25NM60N Description

STP25NM60N is a 600v N-channel MDmesh? II Power MOSFET. This series of devices is realized with the second generation of MDmesh? technology. This

revolutionary MOSFET STP25NM60N associates a new vertical structure to the company?ˉs strip layout to yield one of the world?ˉs lowest on-resistance and gate charges. The STP25NM60N is, therefore, suitable for the most demanding high-efficiency converters.
