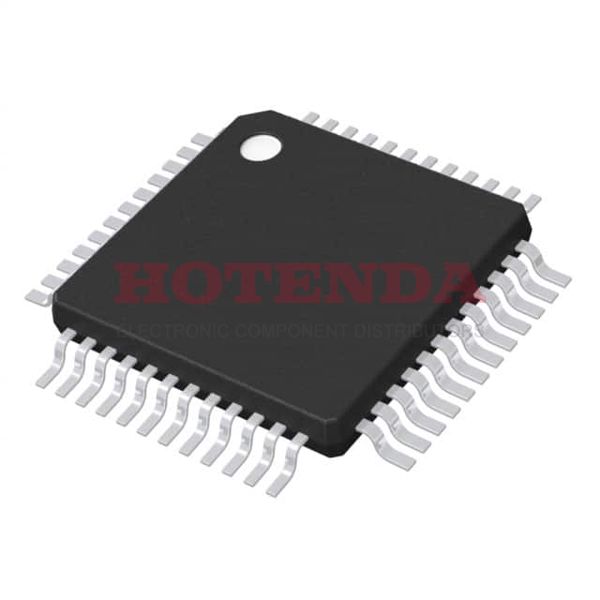

128KB 128K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller STM32L4 Series STM32L412 3V 48-LQFP
SOT-23
STM32L412CBT6 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mounting Type
Surface Mount
Package / Case
48-LQFP
Surface Mount
YES
Operating Temperature
-40°C~85°C TA
Packaging
Tray
Series
STM32L4
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
48
Terminal Form
GULL WING
Supply Voltage
3V
Terminal Pitch
0.5mm
Reach Compliance Code
compliant
Base Part Number
STM32L412
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
1.71V
Oscillator Type
Internal
Number of I/O
38
Speed
80MHz
RAM Size
40K x 8
Voltage - Supply (Vcc/Vdd)
1.71V~3.6V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Core Processor
ARM® Cortex®-M4
Peripherals
Brown-out Detect/Reset, DMA, PWM, WDT
Clock Frequency
48MHz
Program Memory Type
FLASH
Core Size
32-Bit
Program Memory Size
128KB 128K x 8
Connectivity
I2C, Infrared, IrDA, LINbus, Quad SPI, SPI, UART/USART, USB
Bit Size
32
Data Converter
A/D 10x12b
Has ADC
YES
DMA Channels
YES
PWM Channels
YES
Length
7mm
Width
7mm
In-Stock:1430 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$4.81000
$4.81
10
$4.35200
$43.52
250
$3.45432
$863.58
500
$3.13260
$1566.3
STM32L412CBT6 Product Details
STM32L412CBT6 Description
The STM32L412CBT6 devices are ultra-low-power microcontrollers built on the powerful 32-bit RISC Arm? Cortex?-M4 core that operates at up to 80 MHz. A floating point unit (FPU) single precision is a characteristic of the Cortex-M4 core that supports all Arm? single-precision data-processing instructions and data formats. Additionally, it incorporates a memory protection unit (MPU) that improves program security together with the whole range of DSP instructions.
STM32L412CBT6 Features
Standby mode with RTC at 245 nA
0.7 μA 0.95 A in Stop 2 mode with RTC
Run mode: 79 A/MHz (LDO Mode)
Run mode of 28 A/MHz (@3.3 V SMPS Mode)
Batch acquisition mode (BAM)
4 seconds for awakening from stop mode
Reset Brown out (BOR)
A matrix of connections
STM32L412CBT6 Applications
Switching applications
