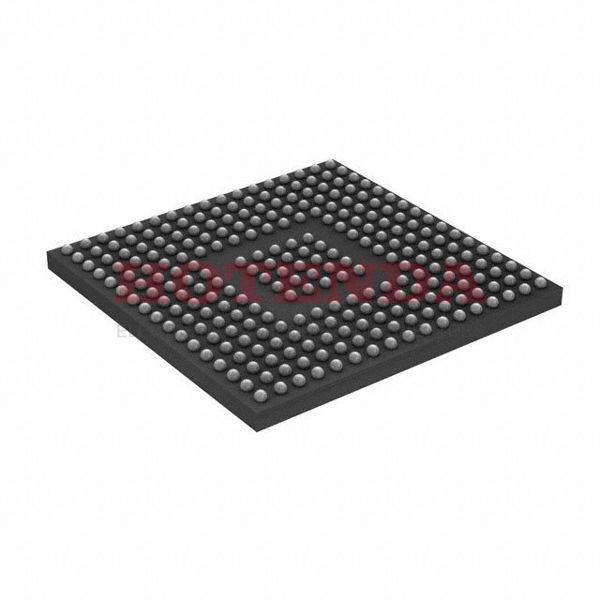

STM32H747XIH6U Description
The STM32H747XIH6U MCU is based on the high-performance Arm? Cortex?-M7 and Cortex?-M4 32-bit RISC cores incorporating high-speed embedded memories with a dual-bank Flash memory of up to 2 Mbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access.
STM32H747XIH6U Features
32-bit Arm? Cortex?-M7 core with double-precision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency
up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
True random number generators (3 oscillators each)
96-bit unique ID
All packages are ECOPACK?2 compliant
General-purpose input/outputs
Reset and power management
Low-power consumption
Up to 35 communication peripherals
STM32H747XIH6U Applications
Motor drive and application control
Medical equipment
Industrial applications: PLC, inverters, circuit breakers
Printers, and scanners
Alarm systems, video intercom, and HVAC
Home audio appliances
Mobile applications, Internet of Things
Wearable devices: smartwatches
