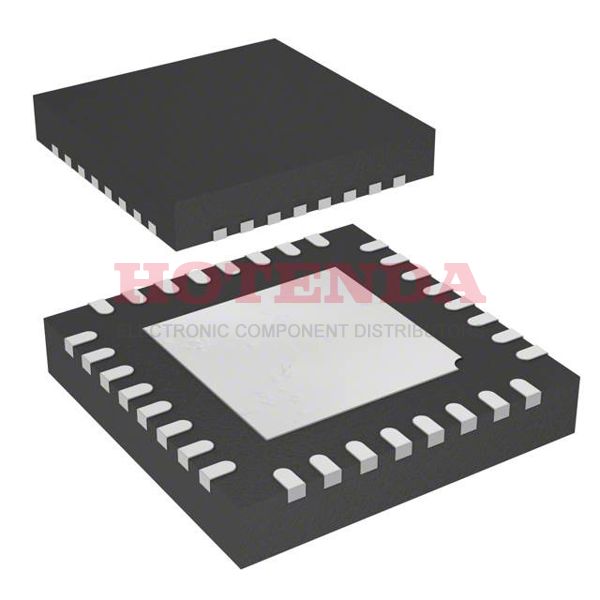

STM32G071KBU6 Description
The high-performance Arm? Cortex?-M0+ 32-bit RISC processor of the STM32G071x8/xB mainstream microcontrollers operates at up to 64 MHz frequency. They are appropriate for a wide range of applications in the consumer, industrial, and appliance domains and prepared for Internet of Things (IoT) solutions because to their high level of integration.
The devices offer
A 12-bit ADC (2.5 MSps) with up to 19 channels, a 12-bit DAC with two channels, two fast comparators, an internal voltage reference buffer, a low-power RTC, an advanced control PWM timer operating at up to twice the CPU frequency, five general-purpose 16-bit timers, one of which operates at twice the CPU frequency, a 32-bit general-purpose timer, two basic timers, and two low-power timers are included in the standard A USB Type-C Power Delivery controller is completely integrated into the STM32G071x8/xB devices.
STM32G071KBU6 Features
Core: Arm? 32-bit Cortex?-M0+ CPU, frequency up to 64 MHz
-40°C to 85°C/105°C/125°C operating temperature
CRC calculation unit
Reset and power management
7-channel DMA controller with flexible mapping
12-bit, 0.4 μs ADC (up to 16 ext. channels)
Two 12-bit DACs, low-power sample-and-hold
Two fast low-power analog comparators, with programmable input and output, rail-to-rail
USB Type-C? Power Delivery controller
Development support: serial wire debug (SWD)
96-bit unique ID
All packages ECOPACK?2 compliant
STM32G071KBU6 Applications
Power Management
Consumer Electronics
Portable Devices
Industrial
