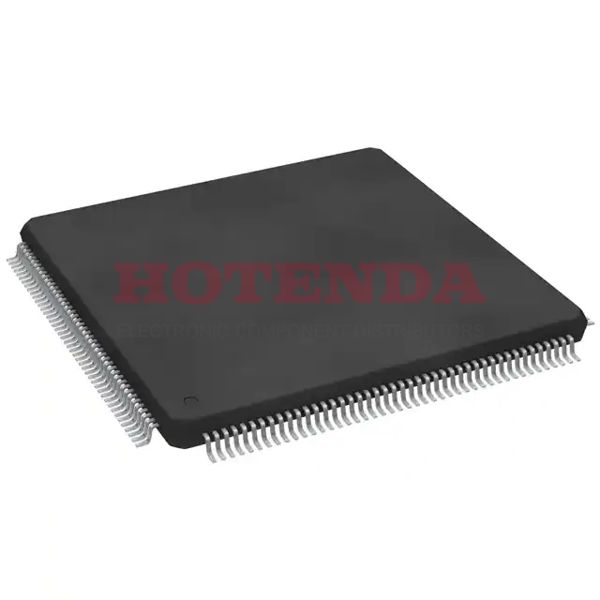

STM32F767IIT6 Description
STM32F767IIT6 devices are based on a high-performance ARM Cortex - M7 32-bit RISC core and operate at up to 216 MHz. The Cortex - M7 kernel uses floating-point units (FPU) to support ARM double-precision and single-precision data processing instructions and data types. It also implements a complete set of DSP instructions and a memory protection unit (MPU), thereby enhancing the security of the application. STM32F765xx, STM32F767xx, STM32F768Ax and STM32F769xx devices integrate high-speed embedded memory with up to 2 MB of flash memory, 512 K bytes of SRAM (including 128K bytes of data Tcm RAM for critical real-time data), 16 K bytes of instruction Tcm RAM (for critical real-time routines), and 4 K bytes of backup SRAM (available in the lowest power mode) And various enhanced I APB O and peripherals connected to two APB buses, two AHB buses, a 32-bit multi-AHB bus matrix and a multi-layer AXI interconnection supporting internal and external memory access.
STM32F767IIT6 Features
Core: Arm? 32-bit Cortex?-M7 CPU with
DPFPU, ART Accelerator? and L1-cache:
16 Kbytes I/D cache, allowing 0-wait state
execution from embedded Flash and external
memories, up to 216 MHz, MPU,
462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1),
and DSP instructions.
? Memories
– Up to 2 Mbytes of Flash memory organized
into two banks allowing read-while-write
– SRAM: 512 Kbytes (including 128 Kbytes
of data TCM RAM for critical real-time data)
+ 16 Kbytes of instruction TCM RAM (for
critical real-time routines) + 4 Kbytes of
backup SRAM
– Flexible external memory controller with up
to 32-bit data bus: SRAM, PSRAM,
SDRAM/LPSDR SDRAM, NOR/NAND
memories
? Dual mode Quad-SPI
? Graphics
– Chrom-ART Accelerator? (DMA2D),
graphical hardware accelerator enabling
enhanced graphical user interface
– Hardware JPEG codec
– LCD-TFT controller supporting up to XGA
resolution
– MIPI? DSI host controller supporting up to
720p 30 Hz resolution
STM32F767IIT6Applications
? Motor drive and application control
? Medical equipment
? Industrial applications: PLC, inverters, circuit breakers
? Printers, and scanners
? Alarm systems, video intercom, and HVAC
? Home audio appliances
? Mobile applications, Internet of Things
? Wearable devices: smartwatches
