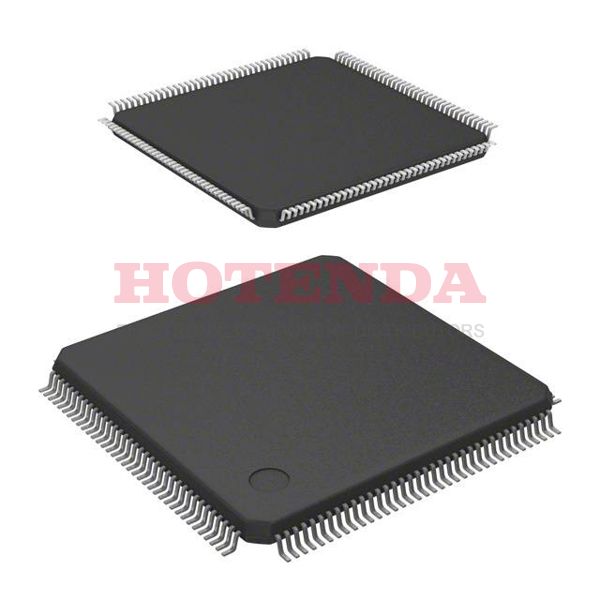

STM32F469ZIT6 Description
The STM32F469ZIT6 is built around the high-performance Arm? Cortex?-M4 32-bit RISC processor, which runs at up to 180 MHz. All Arm? single-precision data-processing instructions and data formats are supported by the Cortex?-M4 core's Floating point unit (FPU) single precision. Additionally, the STM32F469ZIT6 includes a full set of DSP instructions as well as a memory protection unit (MPU) to improve application security. The STM32F469ZIT6 has a large number of upgraded I/Os and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix, as well as high-speed embedded storage (Flash memory up to 2 Mbytes, up to 384 Kbytes of SRAM).
STM32F469ZIT6 Features
STM32F469NIH6 microcontroller featuring 2 Mbytes of Flash memory and 324 Kbytes of RAM in the BGA216 package
On-board ST-LINK/V2-1 SWD debugger, supporting USB enumeration capability:
Mbed-enabled (mbed.org)
USB functions: USB virtual COM port, mass storage, debug port
4 inches 800x480 pixel TFT color LCD with MIPI DSI interface and capacitive touch screen
SAI Audio DAC, with a stereo headphone output jack
3 MEMS microphones
MicroSD card connector
I2C extension connector
4Mx32bit SDRAM
128-Mbit Quad-SPI NOR Flash
Reset and wake-up buttons
4 color user LEDs
USB OTG FS with Micro-AB connector
Three power supply options:
Expansion connectors and Arduino? UNO V3 connectors
Comprehensive free software including a variety of examples, part of STM32Cube package
Supported by a wide choice of integrated development environments
STM32F469ZIT6 Applications
Sensing & Instrumentation
Consumer Electronics
Portable devices
Terminals
Audio and video players
PDAs, palmtops, organizer
Medical
