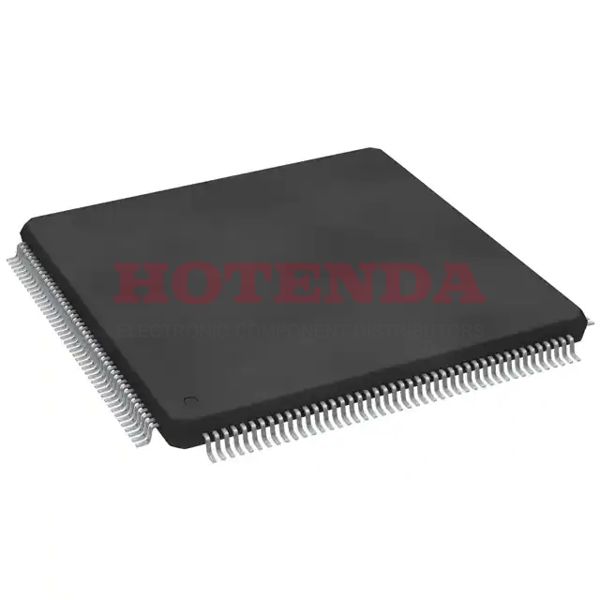

STM32F469IGT6 Description
The high-performance ARM? Cortex?-M4 32-bit RISC processor that powers the STM32F469xx devices operates at a frequency of up to 180 MHz. A floating point unit (FPU) single precision is a characteristic of the Cortex?-M4 core that supports all ARM? single-precision data processing instructions and data formats. Additionally, it incorporates a memory protection unit (MPU) that improves program security together with the whole range of DSP instructions.
The STM32F469xx devices have a wide range of upgraded I/Os and peripherals coupled with high-speed embedded memories (Flash memory up to 2 Mbytes, up to 384 Kbytes of SRAM), connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix.
STM32F469IGT6 Features
8- to 14-bit parallel camera interface up to 54 Mbytes/s
True random number generator
CRC calculation unit
RTC: subsecond accuracy, hardware calendar
96 bit unique ID
3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
2×12-bit D/A converters
General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
STM32F469IGT6 Applications
Power Management
Consumer Electronics
Portable Devices
Industrial
