Name: STM32F205ZGT7TR
Brand: STMicroelectronics
SKU: STM32F205ZGT7TR
Price: 16.26000 USD
Availability: InStock

new

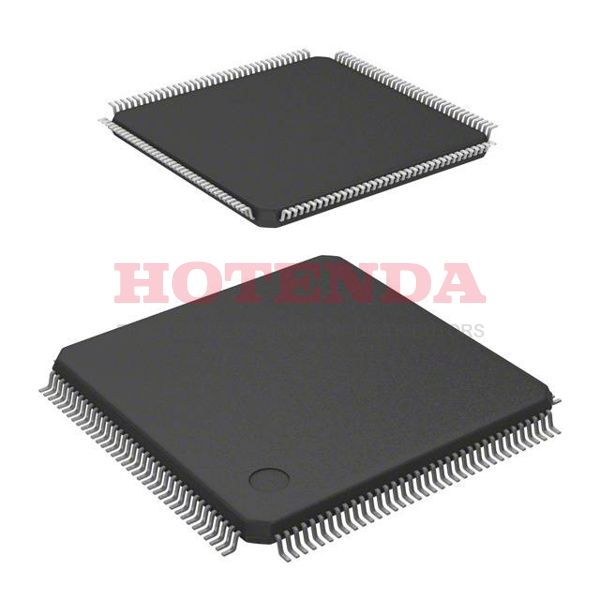

STM32F205ZGT7TR

Manufacturer part number:STM32F205ZGT7TR

Manufacturer:STMicroelectronics

Description:1MB 1M x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller STM32F2 Series 144-LQFP

Case Package:SOT-23

Datasheet:STM32F205ZGT7TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	144-LQFP
Surface Mount	YES
Operating Temperature	-40°C~105°C TA
Series	STM32F2
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
ECCN Code	3A991.A.2
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	144
JESD-30 Code	S-PQFP-G144
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	1.8V
Oscillator Type	Internal
Number of I/O	114
Speed	120MHz
RAM Size	128K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M3
Peripherals	Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Clock Frequency	16MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	1MB 1M x 8
Connectivity	CANbus, I2C, IrDA, LINbus, MMC, SPI, UART/USART, USB OTG
Supply Current-Max	93mA
Bit Size	32
Data Converter	A/D 24x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Address Bus Width	24
ROM (words)	65536
On Chip Program ROM Width	128
CPU Family	CORTEX-M3
Low Power Mode	YES
External Data Bus Width	32
RAM (bytes)	131072
Number of Serial I/Os	6
Number of Timers	14
On Chip Data RAM Width	32
Number of DMA Channels	16
Length	20mm
Height Seated (Max)	1.6mm
Width	20mm
RoHS Status	RoHS Compliant

STM32F205ZGT7TR Product Details

STM32F205ZGT7TR Overview

A 144-LQFP package is included. In total, it has 114 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 32-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~105°C TA. STM32F2 series components belong to this electrical component. Its program memory size is 1MB 1M x 8. There is a ARM® Cortex®-M3 Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 144 terminations in total. The part works on a 32-bit basis. The Microcontroller chip has YES DMA channels. In order for the device to work with the motor, it utilizes the PWM channel YES. A total of 144 pins are present. Devices based on the CORTEX-M3 series of CPUs are embedded in the device. In order for it to function, it needs to have a clock frequency of 16MHz. There are 6 serial I/Os on the IC part. 14 bits are found on a MCU chip.
