Name: STM32F103ZCT6TR
Brand: STMicroelectronics
SKU: STM32F103ZCT6TR
Price: 14.12000 USD
Availability: InStock

new

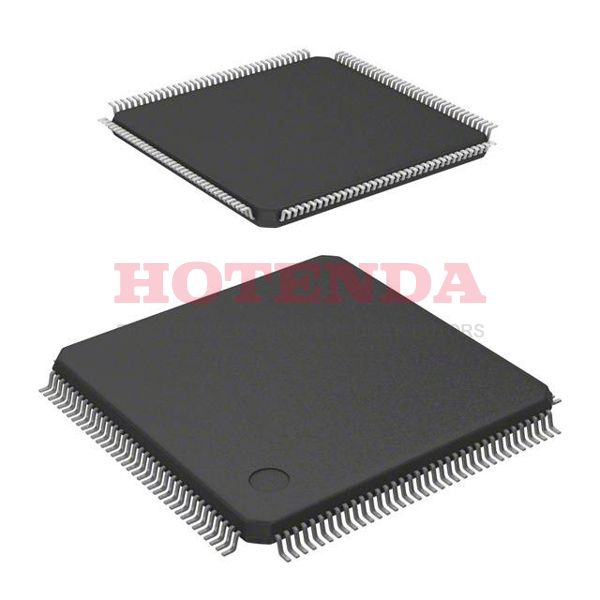

STM32F103ZCT6TR

Manufacturer part number:STM32F103ZCT6TR

Manufacturer:STMicroelectronics

Description:256KB 256K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller STM32F1 Series STM32F103 144 Pin 72MHz 3.3V 144-LQFP

Case Package:SOT-23

Datasheet:STM32F103ZCT6TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	144-LQFP
Surface Mount	YES
Number of Pins	144
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	STM32F1
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
ECCN Code	3A991.A.2
Max Power Dissipation	666mW
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	72MHz
Base Part Number	STM32F103
Pin Count	144
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2V
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART, USB
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	112
RAM Size	48K x 8
Voltage - Supply (Vcc/Vdd)	2V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M3
Peripherals	DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Supply Current-Max	69mA
Bit Size	32
Data Converter	A/D 21x12b; D/A 2x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	8
Address Bus Width	24
Core Architecture	ARM
On Chip Program ROM Width	8
CPU Family	CORTEX-M3
Boundary Scan	YES
Low Power Mode	YES
Format	FIXED POINT
Integrated Cache	NO
Number of External Interrupts	16
Number of DMA Channels	12
Length	20mm
Height Seated (Max)	1.6mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

STM32F103ZCT6TR Product Details

STM32F103ZCT6TR Overview

This Microcontroller comes in a 144-LQFP package. This Microcontroller has 112 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in STM32F1 Series. The size of the program memory of Microcontroller is 256KB 256K x 8. MCU is powered by ARM® Cortex®-M3 Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 144 terminals. Microcontroller comes with 32 bit size. The component always operates in 3.3V supply voltage. MCU chip has YES DMA channels. The part owns 256kB memory size. You can find alternatives through the base part number STM32F103. MCU's frequency is 72MHz. The device works in YES PWM channels. The pin number of the component remains 144. It has 8 timers/counters. It counts 144 pins. The device is embedded with CORTEX-M3 CPU family. It has a ARM core architecture integrated into it. 16 external interrupts are included in the eletrical part.
