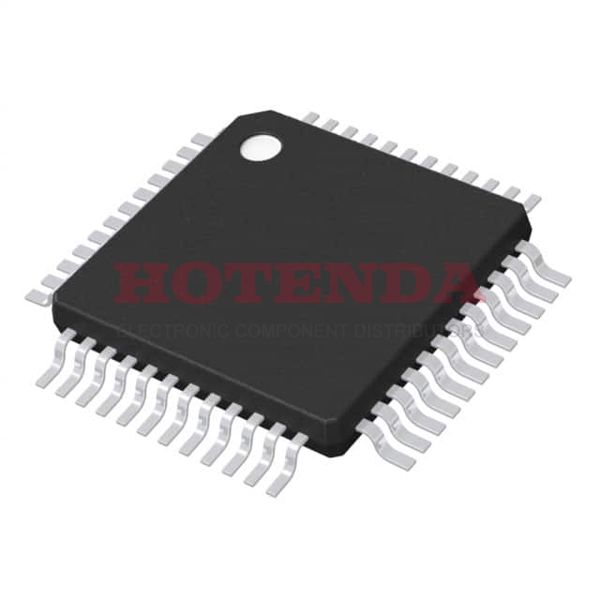

STM32F100C8T7BTR Description
The high-performance ARM? Cortex?-M3 32-bit RISC core, operating at a 24 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 8 Kbytes), and a wide range of enhanced peripherals and I/Os connected to two APB buses are all included in the STM32F100x4, STM32F100x6, STM32F100x8, and STM32F100xB microcontroller One 12-bit ADC, two 12-bit DACs, up to six general-purpose 16-bit timers, and an advanced-control PWM timer are all standard features of each device, along with up to two I2Cs, two SPIs, one HDMI CEC, and up to three USARTs.
STM32F100C8T7BTR Features
2.0 to 3.6 V application supply and I/Os
POR, PDR and programmable voltage detector (PVD)
4-to-24 MHz crystal oscillator
Internal 8 MHz factory-trimmed RC
Internal 40 kHz RC
PLL for CPU clock
32 kHz oscillator for RTC with calibration
Sleep, Stop and Standby modes
VBAT supply for RTC and backup registers
7-channel DMA controller
Peripherals supported: timers, ADC, SPIs, I2Cs, USARTs and DACs
STM32F100C8T7BTR Applications
Power Management
Consumer Electronics
Portable Devices
Industrial
