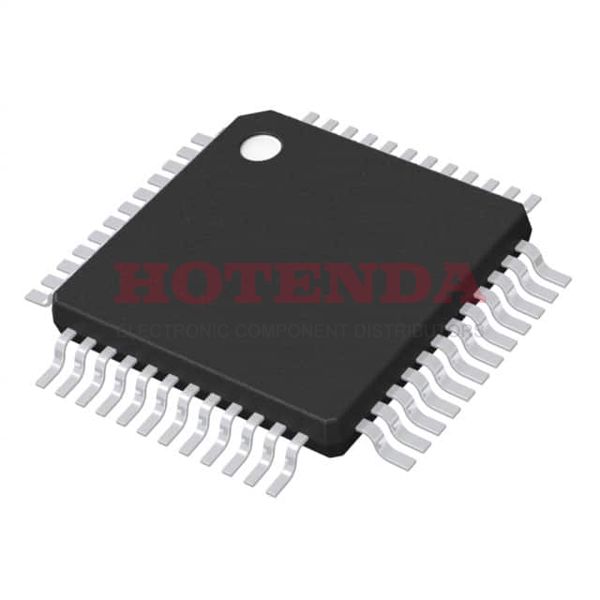

STM32F091CCT6J Description
The STM32F091xB/xC microcontrollers incorporate the high-performance ARM? Cortex?-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. The device offers standard communication interfaces (two I2Cs, two SPIs/one I2S, one HDMI CEC, and up to eight USARTs), one CAN, one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer, and an advanced-control PWM timer.
STM32F091CCT6J Features
Core: ARM? 32-bit Cortex?-M0 CPU,
frequency up to 48 MHz
Memories
– 128 to 256 Kbytes of Flash memory
– 32 Kbytes of SRAM with HW parity
CRC calculation unit
Reset and power management
– Digital & I/Os supply: VDD = 2.0 V to 3.6 V
– Analog supply: VDDA = VDD to 3.6 V
– Power-on/Power down reset (POR/PDR)
– Programmable voltage detector (PVD)
– Low power modes: Sleep, Stop, Standby
– VBAT supply for RTC and backup registers
