Name: ST7FMC2S6T6
Brand: STMicroelectronics
SKU: ST7FMC2S6T6
Availability: InStock

new-10%

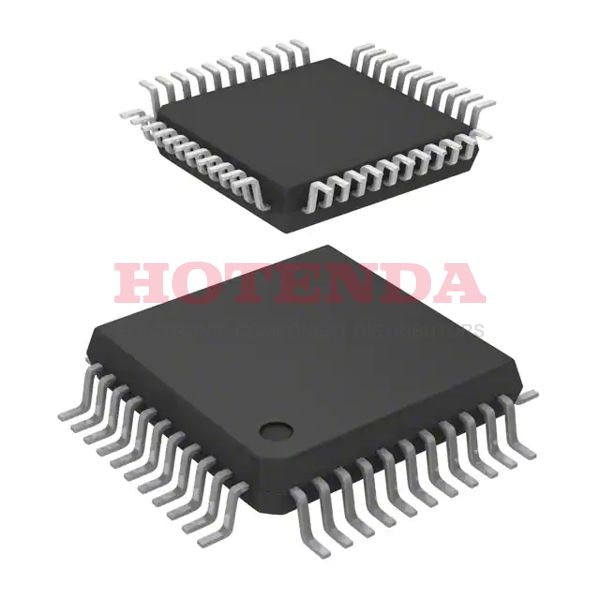

ST7FMC2S6T6

Manufacturer part number:ST7FMC2S6T6

Manufacturer:STMicroelectronics

Description:32KB 32K x 8 FLASH 8-Bit Microcontroller ST7 Series ST7FM 44 Pin 8MHz 5V 44-LQFP

Case Package:SOT-23

Datasheet:ST7FMC2S6T6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-LQFP
Number of Pins	44
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	ST7
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Power Dissipation	500mW
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.8mm
Frequency	8MHz
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	ST7FM
Pin Count	44
Operating Supply Voltage	5V
Power Supplies	5V
Interface	SCI, SPI
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	26
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	3.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Peripherals	LVD, Motor Control PWM, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	LINbusSCI, SPI
Supply Current-Max	18mA
Bit Size	8
Data Converter	A/D 11x10b
Watchdog Timer	Yes
Access Time	8 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
On Chip Program ROM Width	8
Number of Programmable I/O	60
Length	10mm
Height Seated (Max)	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

ST7FMC2S6T6 Product Details

ST7FMC2S6T6 Overview
