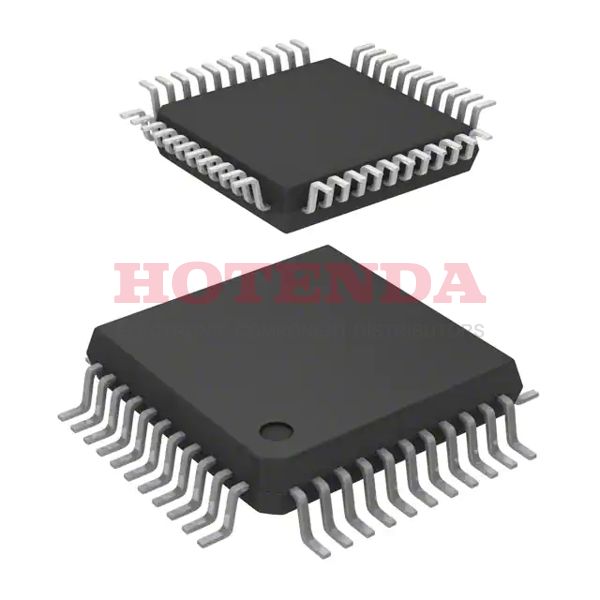

ST7FMC2S4T6 Description
The ST7FMC2S4T6 is a member of the ST7 microcontroller family designed for mid-range applications with a Motor Control dedicated peripheral. It is based are based on a common industry standard 8-bit core, featuring an enhanced instruction set and is available with FLASH, ROM or FASTROM program memory.
ST7FMC2S4T6 Features
8K to 60K dual voltage Flash Program memory or ROM with read-out protection capability, In-application programming and In-circuit programming.
384 to 1.5K RAM
HDFlash endurance: 100 cycles, data retention: 40 years at 85°C
Enhanced reset system
Enhanced low voltage supervisor (LVD) for the main supply and auxiliary voltage detector (AVD) with interrupt capability
Clock sources: crystal/ceramic resonator os- oscillators and by-pass for external clock, clock security system.
Four power-saving modes: Halt, Active-halt, Wait and Slow
Nested interrupt controller
14 interrupt vectors plus TRAP and RESET
MCES top-level interrupt pin
16 external interrupt lines (on 3 vectors)
ST7FMC2S4T6 Applications
