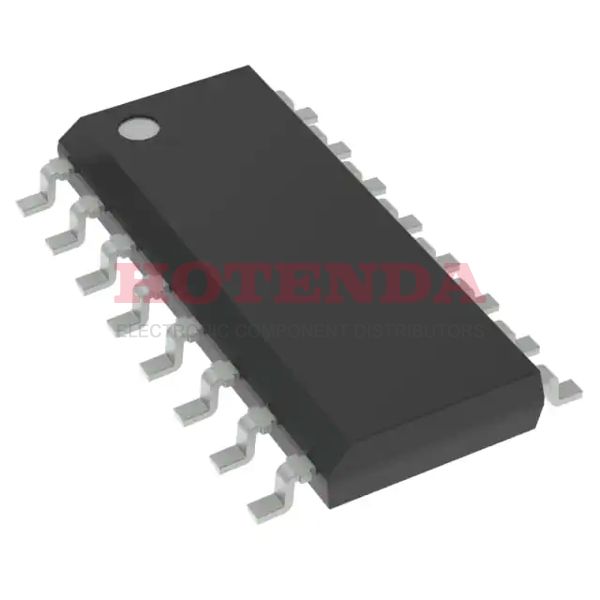

1.5KB 1.5K x 8 FLASH 8-Bit Microcontroller ST7 Series ST7FL 16 Pin 8MHz 5V 16-SOIC (0.154, 3.90mm Width)
SOT-23
ST7FLITE05Y0M6 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
NRND (Last Updated: 6 months ago)
Factory Lead Time
14 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.154, 3.90mm Width)
Number of Pins
16
Operating Temperature
-40°C~85°C TA
Packaging
Tube
Series
ST7
JESD-609 Code
e3
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
16
ECCN Code
EAR99
Terminal Finish
Matte Tin (Sn)
Terminal Position
DUAL
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
Supply Voltage
5V
Frequency
8MHz
Time@Peak Reflow Temperature-Max (s)
30
Base Part Number
ST7FL
Pin Count
16
Supply Voltage-Min (Vsup)
3.3V
Memory Size
1.5kB
Oscillator Type
Internal
Number of I/O
13
RAM Size
128 x 8
Voltage - Supply (Vcc/Vdd)
2.4V~5.5V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER
Number of Bits
8
Peripherals
LVD, POR, PWM, WDT
Program Memory Type
FLASH
Core Size
8-Bit
Program Memory Size
1.5KB 1.5K x 8
Connectivity
SPI
Supply Current-Max
9mA
Bit Size
8
Data Converter
A/D 5x8b
Watchdog Timer
Yes
Has ADC
YES
DMA Channels
NO
Data Bus Width
8b
PWM Channels
YES
Number of Timers/Counters
2
Address Bus Width
8b
Number of ADC Channels
5
Number of I2C Channels
1
Number of Ethernet Channels
0
Height
1.5mm
Length
10mm
Width
4mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:1651 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$2.78000
$2.78
50
$2.36260
$118.13
100
$2.04750
$204.75
500
$1.74300
$871.5
ST7FLITE05Y0M6 Product Details
ST7FLITE05Y0M6 Description
The ST7 microcontroller family includes the ST7FLITE05Y0M6 (ST7LITESx). Every ST7 device is built around an 8-bit core that is 8-bit industry standard and has an improved instruction set. With byte-by-byte In-Circuit Programming (ICP) and In-Application Programming (IAP) capabilities, the ST7FLITE05Y0M6 has FLASH memory.
ST7FLITE05Y0M6 Features
Data processing using 8 bits
63 basic instructions with detection of incorrect opcodes
seventeen primary addressing modalities
Instruction for an unsigned 8 by 8 multiplication.
ST7FLITE05Y0M6 Applications
Switching applications
