ST72F561R6TA

Manufacturer part number:ST72F561R6TA

Manufacturer:STMicroelectronics

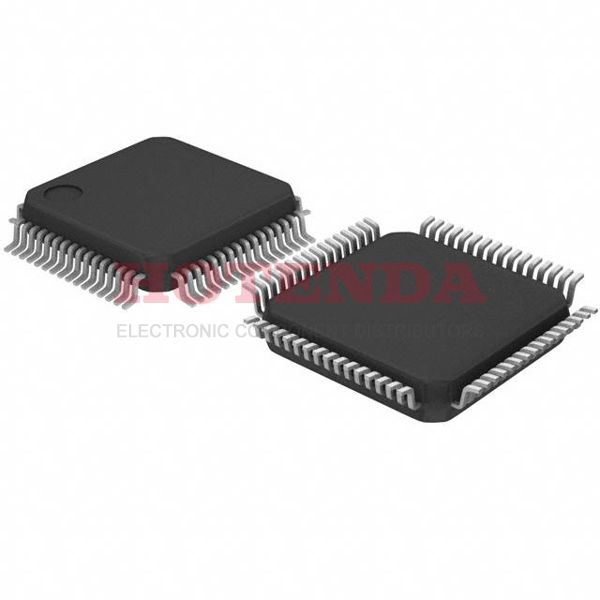

Description:32KB 32K x 8 FLASH 8-Bit Microcontroller ST7 Series ST72F56 64 Pin 8MHz 5V 64-LQFP

Case Package:SOT-23

Datasheet:ST72F561R6TA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-LQFP
Number of Pins	64
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	ST7
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Max Power Dissipation	500mW
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.8mm
Frequency	8MHz
Base Part Number	ST72F56
Pin Count	64
Operating Supply Voltage	5V
Power Supplies	5V
Interface	CAN, SCI, SPI
Memory Size	32kB
Oscillator Type	External
Number of I/O	48
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	3.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Peripherals	LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	CANbus, LINbusSCI, SPI
Supply Current-Max	150mA
Bit Size	8
Data Converter	A/D 16x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
On Chip Program ROM Width	8
Length	14mm
Height Seated (Max)	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ST72F561R6TA Product Details

ST72F561R6TA Overview

This Microcontroller comes in a 64-LQFP package. This Microcontroller has 48 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in ST7 Series. The size of the program memory of Microcontroller is 32KB 32K x 8. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 64 terminals. Microcontroller comes with 8 bit size. The component always operates in 5V supply voltage. MCU chip has NO DMA channels. The part owns 32kB memory size. You can find alternatives through the base part number ST72F56. MCU's frequency is 8MHz. The device works in YES PWM channels. The pin number of the component remains 64. It has 2 timers/counters. It counts 64 pins.
