Name: ST72F561J9TC
Brand: STMicroelectronics
SKU: ST72F561J9TC
Availability: InStock

new-10%

ST72F561J9TC

Manufacturer part number:ST72F561J9TC

Manufacturer:STMicroelectronics

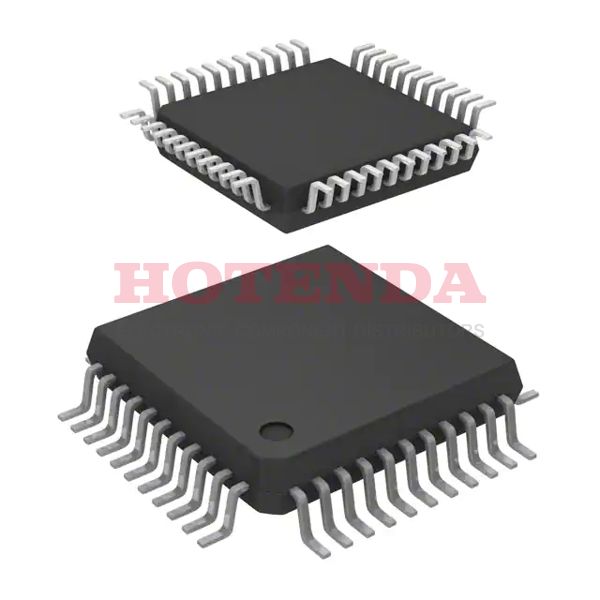

Description:60KB 60K x 8 FLASH 8-Bit Microcontroller ST7 Series ST72F56 44 Pin 8MHz 5V 44-LQFP

Case Package:SOT-23

Datasheet:ST72F561J9TC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-LQFP
Number of Pins	44
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	ST7
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Terminal Finish	Matte Tin (Sn) - annealed
Max Power Dissipation	500mW
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.8mm
Frequency	8MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ST72F56
Pin Count	44
Operating Supply Voltage	5V
Power Supplies	5V
Interface	CAN, SCI, SPI
Memory Size	60kB
Oscillator Type	External
Number of I/O	32
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	3.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Peripherals	LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	60KB 60K x 8
Connectivity	CANbus, LINbusSCI, SPI
Supply Current-Max	15mA
Bit Size	8
Data Converter	A/D 11x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
Number of Programmable I/O	48
Length	10mm
Height Seated (Max)	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ST72F561J9TC Product Details

ST72F561J9TC Description

Produced by STMicroelectronics is ST72F561J9TC. It is within the MCU subcategory of microcontrollers. It is used in various industries, such as communications equipment—systems with wireless infrastructure Businesses business projectors electronic devices electronics on the go. MCU 8-bit ST7 CISC 60KB Flash 5V Automotive 44-Pin LQFP Tray / IC MCU 8BIT 60KB FLASH 44TQFP are the primary specifications for this component. It is also environmentally friendly and RoHS compliant (lead-free).
